PBS1

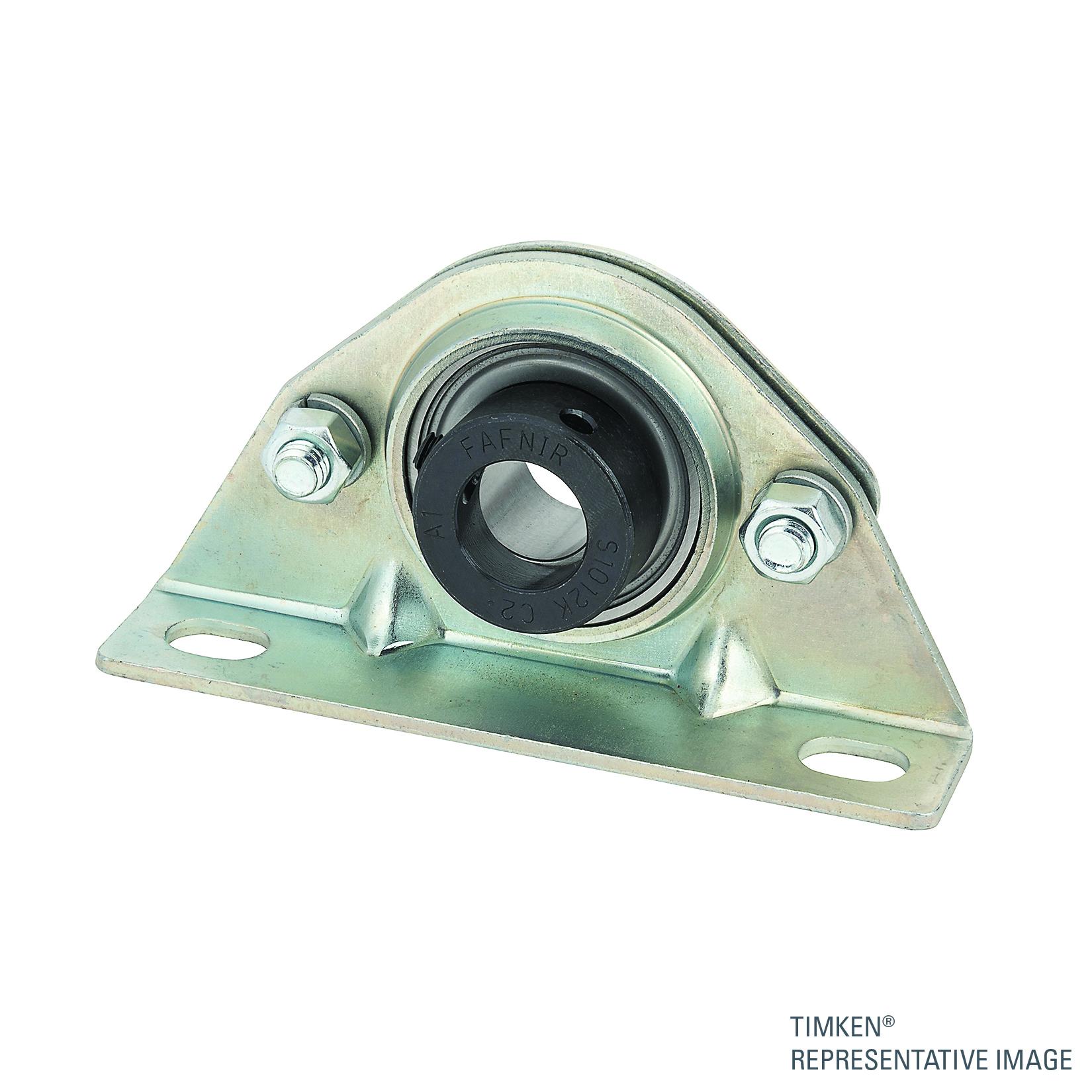

Timken® Fafnir® PBS1 PBS Light Duty Pillow Block Ball Bearing Unit, 0.985 in Dia Bore, 3-3/4 in L Bolt Center-to-Center, 1-7/16 in Base to Bore Centerline, 5-1/4 in OAL x 2-27/32 in OAH
- CP#:
- Item#: PBS1
- Mfr#: PBS1
- UPC: 087796057302
- The PBS series has an economical transmission unit for light-duty, moderate-speed requirements
- The self-locking collar completes the assembly
- This series is made with a precision bearing seat and dimensions are held to close tolerances
- This provides an accurate bearing-to-housing fit and ensures proper alignment of parts
- The base-to-center height and bolt spacing are interchangeable with many other pillow blocks on the market
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, PBS1, Pillow Block Ball Bearing Unit, Light Duty, Series: PBS, 0.985 in Bore, 3-3/4 in Bolt Center-to-Center Length, 1-7/16 in Base to Bore Centerline, 5-1/4 in Overall Length, 0.84 in Overall Width, 2-27/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1 in Base Width, Eccentric Locking Device, Contact Seal, Non-Expansion (Fixed), 3150 lb Dynamic/1760 lb Static Load, 250 deg F, 5440 rpm Maximum, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 1 in |
| Base to Bore Centerline | : | 1-7/16 in |
| Series | : | PBS |
| Bolt Center-to-Center Length | : | 3-3/4 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Eccentric |
| Finish | : | Uncoated |
| Overall Length | : | 5-1/4 in |
| Load Capacity | : | 3150 lb Dynamic/1760 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 5440 rpm |
| Overall Width | : | 0.84 in |
| Inside Diameter | : | 0.985 in |
| Overall Height | : | 2-27/32 in |
| Measurement System | : | Imperial |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
