PBS 5/8

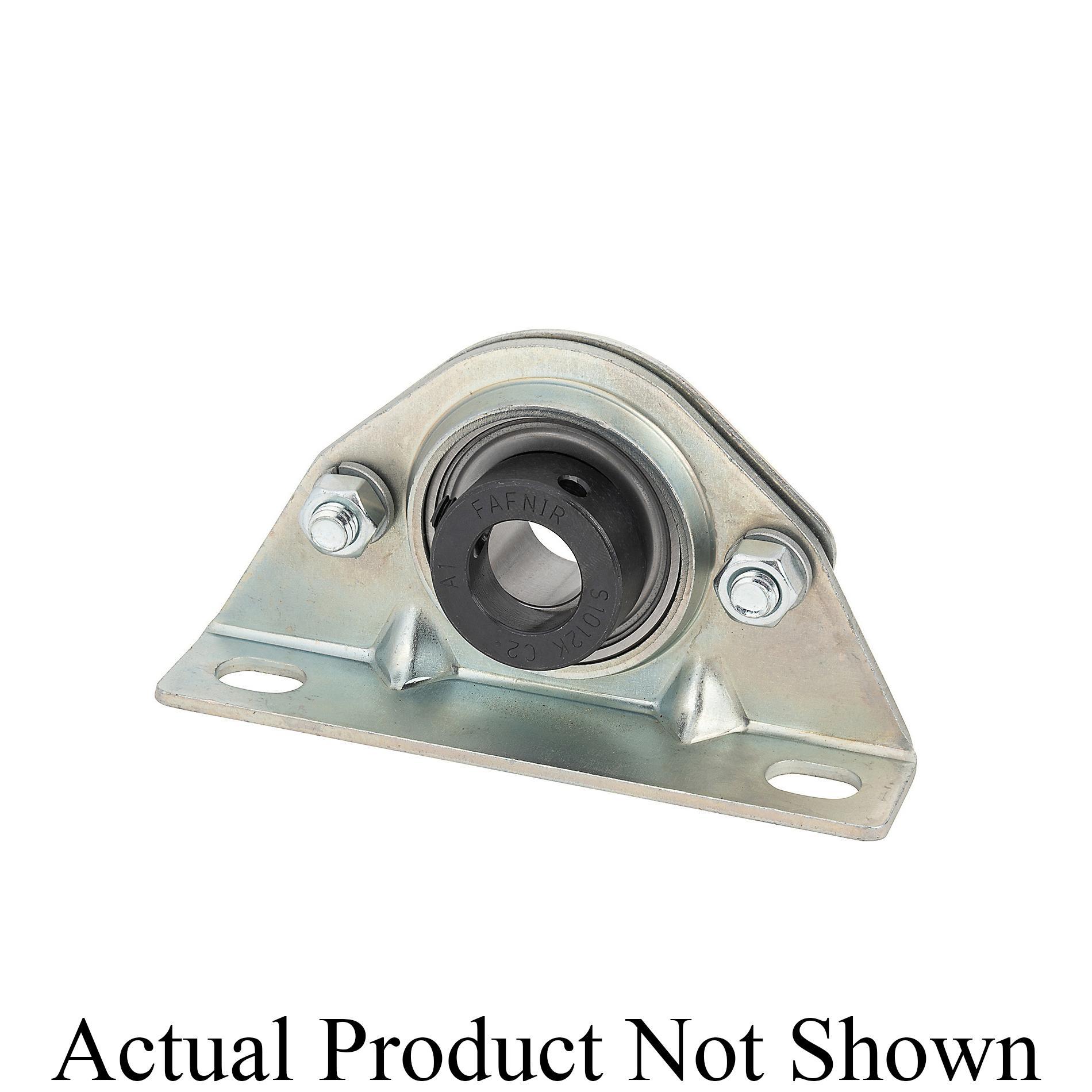

Timken® Fafnir® PBS 5/8 PBS Standard Duty Pillow Block Ball Bearing Housed Unit, 0.626 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 1-3/16 in Base to Bore Centerline, 4-7/8 in OAL x 2.3437 in OAH
- CP#:
- Item#: PBS 5/8
- Mfr#: PBS 5/8
- UPC: 087796056435
- The pressed steel (PBS) series is suited for light duty, moderate speed requirements
- The housing includes two heavy gauge, zinc plated steel stampings
- One is a standard stamping used in the MST two-bolt flangette unit
- This series is made with a precision bearing seat and dimensions are held to close tolerances
- This provides an accurate bearing to housing fit and ensures proper alignment of parts
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken® Fafnir®, PBS 5/8, Pillow Block Ball Bearing Housed Unit, Standard Duty, Series: PBS, 0.626 in Bore, 3-5/8 in Bolt Center-to-Center Length, 1-3/16 in Base to Bore Centerline, 4-7/8 in Overall Length, 3/4 in Overall Width, 2.3437 in Overall Height, Round Bore, Eccentric Locking Device, 2150 lb Dynamic/1070 lb Static Load, Cast Iron
SPECIFICATIONS
| Base to Bore Centerline | : | 1-3/16 in |
| Series | : | PBS |
| Bolt Center-to-Center Length | : | 3-5/8 in |
| Locking Device | : | Eccentric |
| Overall Length | : | 4-7/8 in |
| Load Capacity | : | 2150 lb Dynamic/1070 lb Static |
| Material | : | Cast Iron |
| Overall Width | : | 3/4 in |
| Inside Diameter | : | 0.626 in |
| Overall Height | : | 2.3437 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_010_10650_Catalog.pdf
