PB1 3/16

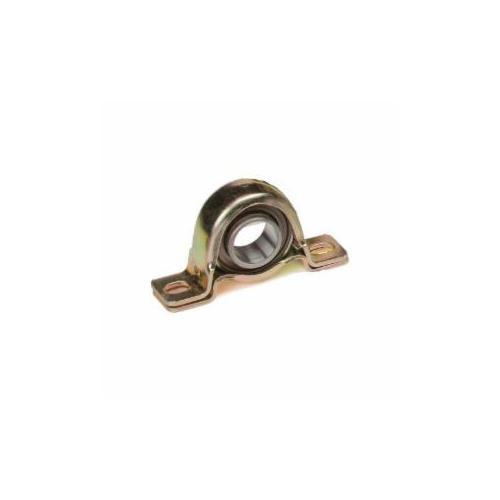

Timken® Fafnir® PB1 3/16 PB Series Light Duty Pillow Block Ball Bearing Unit, 1-3/16 in Dia Bore, 3 to 4-1/8 in L Bolt Center-to-Center, 1-5/16 in Base to Bore Centerline, 4-7/8 in OAL x 2-5/8 in OAH
- CP#:
- Item#: PB1 3/16
- Mfr#: PB1 3/16
- UPC: 087796057968
- The PB series provides the advantages of ball bearings at an economical price
- The PB series consists of a two-piece separable zinc-plated steel housing with a spherical bearing seat
- This allows the spherically ground bearing-to have initial self-alignment in all directions
- The ball bearing is an RA-RRB extended inner-ring-type with positive-contact, land-riding seals and a self-locking collar
- The series incorporates an improved shroud-cap design and comes permanently pre-lubricated
- All units are supplied with extended inner-ring bearing and locking collar
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, PB1 3/16, Pillow Block Ball Bearing Unit, Light Duty, Series: PB Series, 1-3/16 in Bore, 3 to 4-1/8 in Bolt Center-to-Center Length, 1-5/16 in Base to Bore Centerline, 4-7/8 in Overall Length, 0.93 in Overall Width, 2-5/8 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-1/4 in Base Width, Eccentric Locking Device, Contact Seal, Non-Expansion (Fixed), 4370 lb Dynamic/2530 lb Static Load, 250 deg F, 4570 rpm Maximum, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 1-1/4 in |
| Base to Bore Centerline | : | 1-5/16 in |
| Series | : | PB Series |
| Bolt Center-to-Center Length | : | 3 to 4-1/8 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Eccentric |
| Finish | : | Uncoated |
| Overall Length | : | 4-7/8 in |
| Load Capacity | : | 4370 lb Dynamic/2530 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 4570 rpm |
| Overall Width | : | 0.93 in |
| Inside Diameter | : | 1-3/16 in |
| Overall Height | : | 2-5/8 in |
| Measurement System | : | Imperial |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
