LCJT1

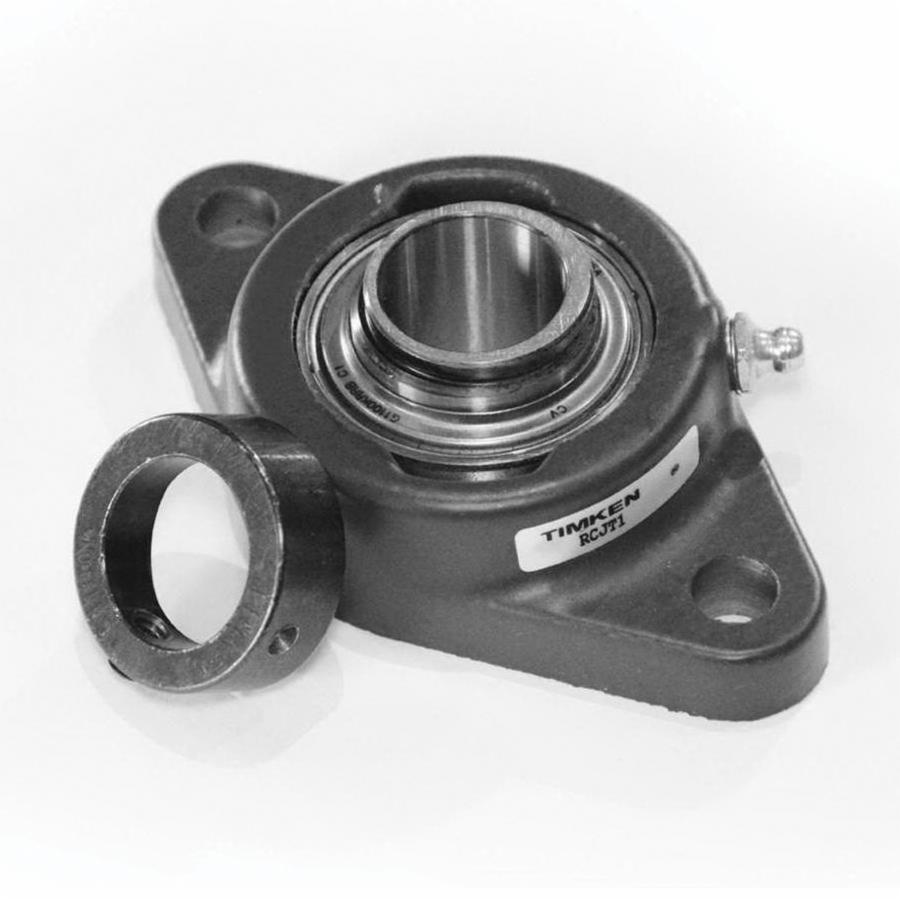

Timken® Fafnir® LCJT1 LCJT Industrial Normal Duty Flange Mount Ball Bearing Unit, 1.001 in Dia Bore, 3-29/32 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 4-7/8 in OAL/Dia
- CP#:
- Item#: LCJT1
- Mfr#: LCJT1
- UPC: 087796057258
- The cartridges are the same basic design as RCJ, TCJ, and LCJ types, except they have two bolt holes instead of four
- This series is primarily designed for applications where the mounting area is restricted
- The LCJT is equipped with the G-KLLB (mechanical-seal) wide-inner-ring ball bearings
- The units are factory pre-lubricated
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, LCJT1, Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: LCJT, 1.001 in Bore, 3-29/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4-7/8 in Overall Length/Diameter, 1.839 in Overall Depth, 1.701 in Overall Height, Eccentric Locking Device, Steel Bearing, 3150 lb Dynamic/1760 lb Static Load, 9070 rpm Maximum, -30 to 275 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-29/32 in |
| Series | : | LCJT |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Eccentric |
| Load Capacity | : | 3150 lb Dynamic/1760 lb Static |
| Maximum Speed | : | 9070 rpm |
| Overall Depth | : | 1.839 in |
| Overall Height | : | 1.701 in |
| Inside Diameter | : | 1.001 in |
| Overall Length/Diameter | : | 4-7/8 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_LCJT1_Specification_Sheet.pdf
