GVFTD 5/8

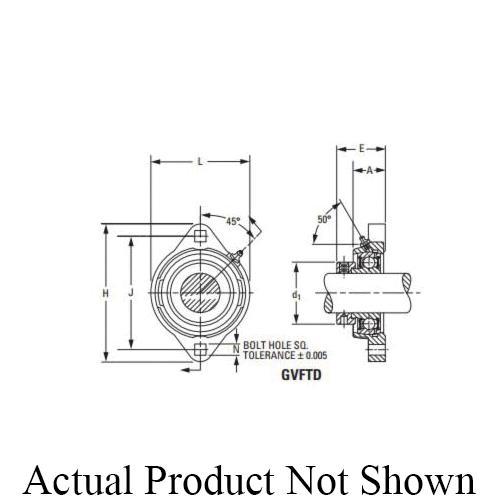

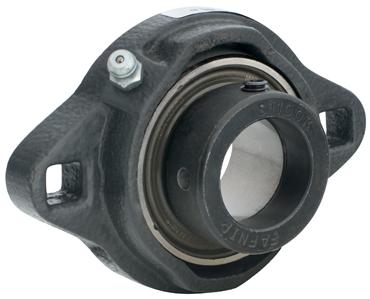

Timken® Fafnir® GVFTD 5/8 GVFTD Normal Duty Relubricatable Flange Mount Ball Bearing Unit, 5/8 in Dia Bore, 2-1/2 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-3/16 in OAL/Dia
- CP#:
- Item#: GVFTD 5/8
- Mfr#: GVFTD 5/8
- UPC: 087796056404
- The malleable-iron flange cartridges provide self-alignment and rigid support
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball housed units, available in a variety of sizes and types, feature wide-inner-ring ball bearings that provide additional shaft support and locking options. The Timken® wide-inner-ring ball bearing is designed for straight shafts and can be positioned without shoulders, locknuts or adapters.
Timken® Fafnir®, GVFTD 5/8, Flange Mount Ball Bearing Unit, Normal Duty Relubricatable, Series: GVFTD, 5/8 in Bore, 2-1/2 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/16 in Overall Length/Diameter, 1-1/4 in Overall Depth, 1.266 in Overall Height, Eccentric Locking Device, Steel Bearing, 2.38 lb Dynamic/1 lb Static Load, 7370 rpm Maximum, -30 to 275 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 2-1/2 in |
| Series | : | GVFTD |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Eccentric |
| Load Capacity | : | 2.38 lb Dynamic/1 lb Static |
| Maximum Speed | : | 7370 rpm |
| Overall Depth | : | 1-1/4 in |
| Overall Height | : | 1.266 in |
| Inside Diameter | : | 5/8 in |
| Overall Length/Diameter | : | 3-3/16 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf
