GSFTD1

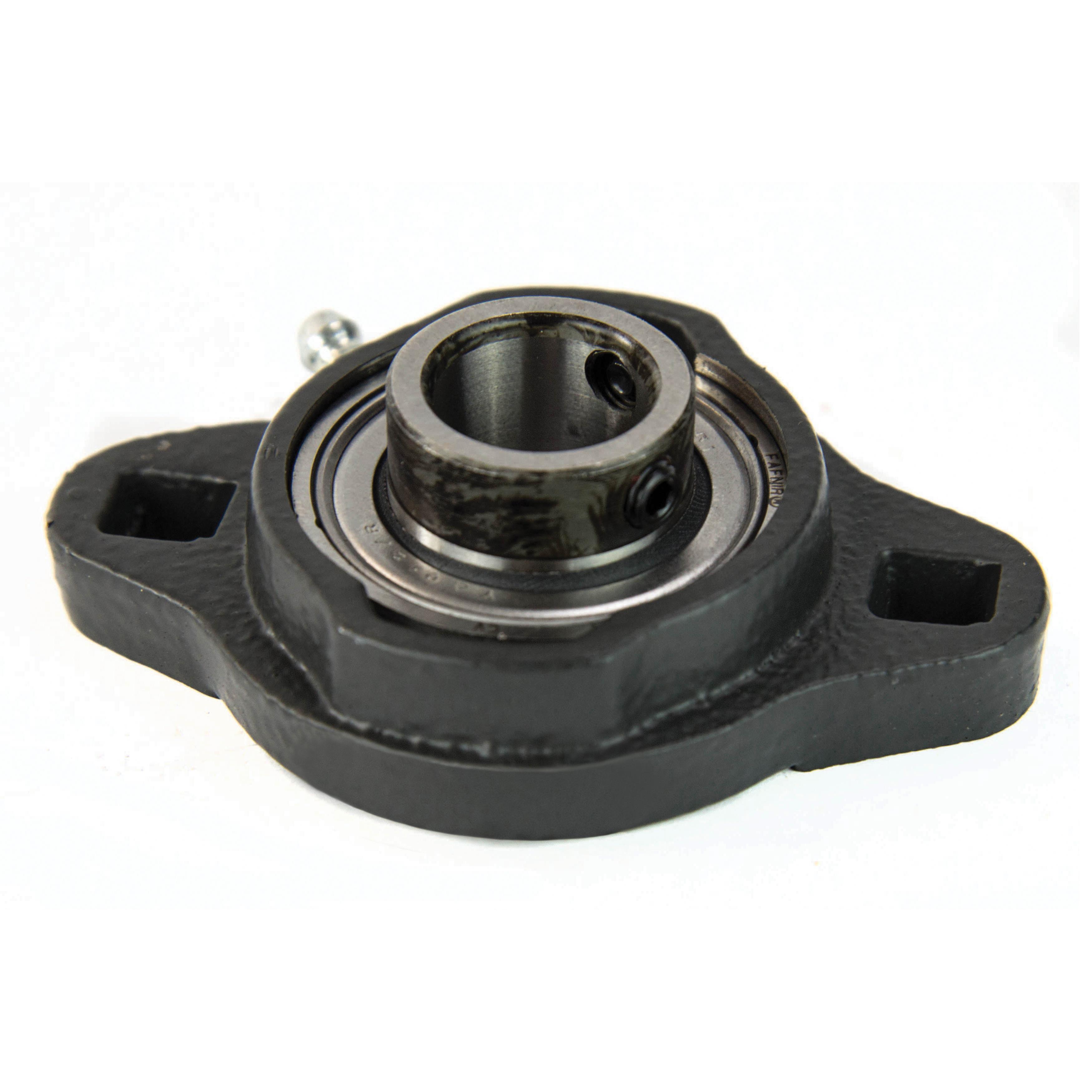

Timken® Fafnir® GSFTD1 GSFTD Series Round Bore Standard Duty Ball Bearing Housed Unit, 1 in Dia Bore, 2.81 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3.75 in OAL/2.05 in OD OAL/Dia
- CP#:
- Item#: GSFTD1
- Mfr#: GSFTD1
- UPC: 087796192935
- The malleable iron flange cartridges provide self-alignment and rigid support for medium duty applications
- The mounting bolt holes are interchangeable with pressed steel flangette units of corresponding size
- Unit is equipped with RRB wide inner ring ball bearings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed to maximize performance, Timken® Fafnir® Ball Bearing Housed Units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken® Fafnir®, GSFTD1, Ball Bearing Housed Unit, Round Bore Standard Duty, Series: GSFTD Series, 1 in Bore, 2.81 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3.75 in OAL/2.05 in OD Overall Length/Diameter, 1.138 in Overall Height, Set Screw Locking Device, Steel Bearing, 3.49 lb Dynamic/1.76 lb Static Load
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 2.81 in |
| Series | : | GSFTD Series |
| Bearing Material | : | Steel |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 3.49 lb Dynamic/1.76 lb Static |
| Overall Height | : | 1.138 in |
| Inside Diameter | : | 1 in |
| Overall Length/Diameter | : | 3.75 in OAL/2.05 in OD |
| Measurement System | : | Imperial |
