DRNR2 3/16

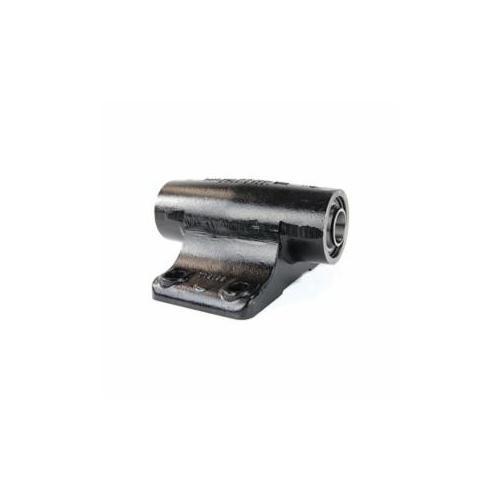

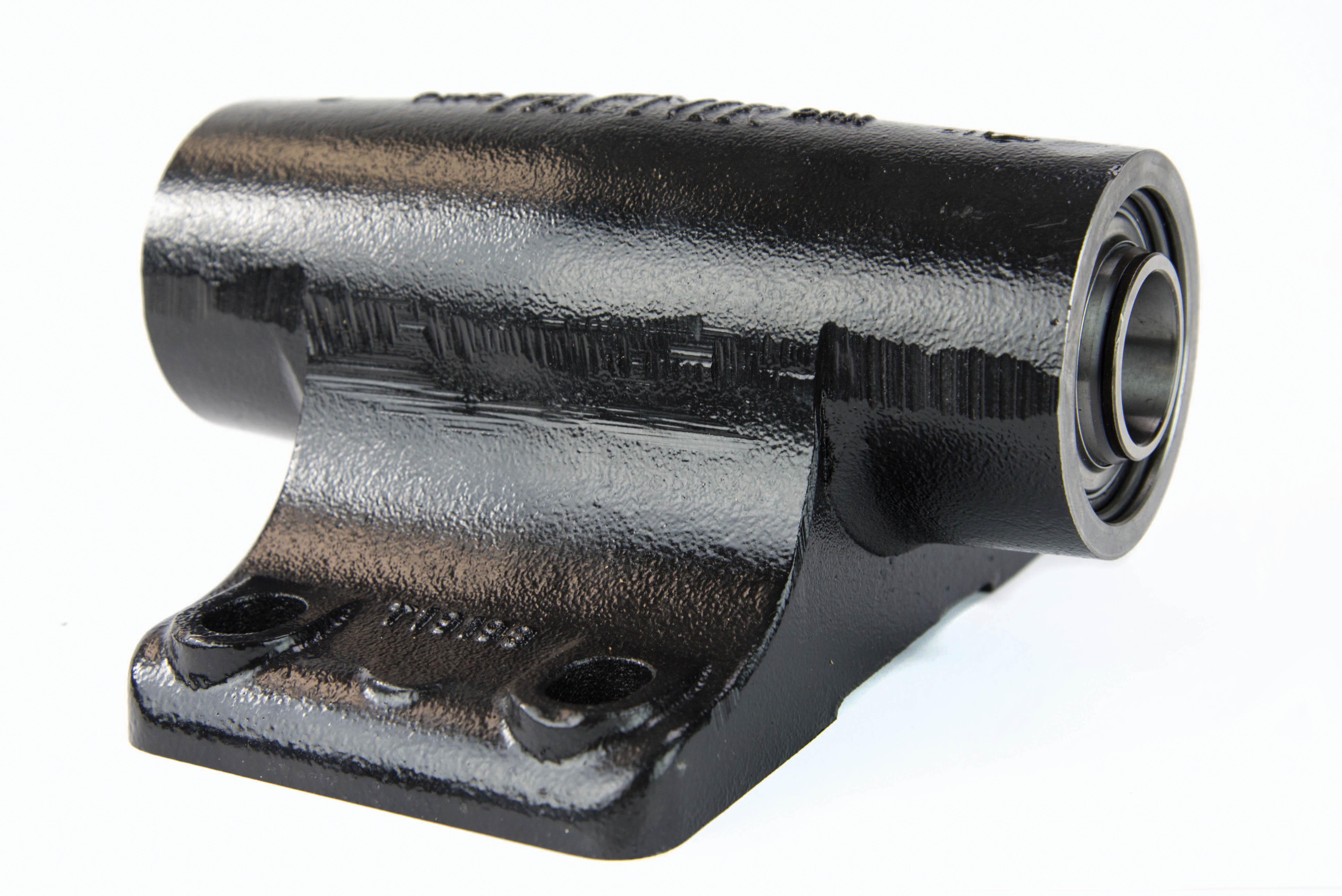

Timken® Fafnir® DRNR2 3/16 DRNR Normal Duty Pillow Block Ball Bearing Unit, 2-3/16 in Dia Bore, 9-1/2 in L Bolt Center-to-Center, 3-1/2 in Base to Bore Centerline, 12 in OAL x 5.25 in OAH
- CP#:
- Item#: DRNR2 3/16
- Mfr#: DRNR2 3/16
- UPC: 087796061132
- The compact, one-piece housing is equipped with two wide-inner-ring ball bearings with integral R-seals and a self-locking collar
- Individual grease chambers are provided for both bearings
- The close clearance baffles allow excess grease to work into the center chamber of the housing
- The grease fittings that take the place of standard pipe plugs provide the means of relubrication
- This pillow block can be mounted in any position, with ample radial and thrust capacity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, DRNR2 3/16, Pillow Block Ball Bearing Unit, Normal Duty, Series: DRNR, 2-3/16 in Bore, 9-1/2 in Bolt Center-to-Center Length, 3-1/2 in Base to Bore Centerline, 12 in Overall Length, 3 in Overall Width, 5.25 in Overall Height, Four-Bolt Base Mounting, Round Bore, 7 in Base Width, Eccentric Locking Device, Contact Seal, Non-Expansion (Fixed), 10800 lb Dynamic/6570 lb Static Load, 250 deg F, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 7 in |
| Base to Bore Centerline | : | 3-1/2 in |
| Series | : | DRNR |
| Bolt Center-to-Center Length | : | 9-1/2 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Eccentric |
| Finish | : | Uncoated |
| Overall Length | : | 12 in |
| Load Capacity | : | 10800 lb Dynamic/6570 lb Static |
| Material | : | Cast Iron |
| Overall Width | : | 3 in |
| Inside Diameter | : | 2-3/16 in |
| Overall Height | : | 5.25 in |
| Measurement System | : | Imperial |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
