Fafnir® 207KL
Fafnir®

Fafnir® 207KL

loading
Fafnir® 207KL
Fafnir®
Email Print

207KL

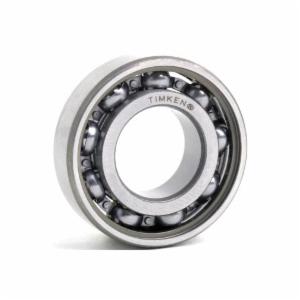

Fafnir® 207KL 200 Light Round Bore Radial Deep Groove Ball Bearing, 35 mm Dia Bore, 72 mm OD, 1 Row, 21 mm W, 29000 N Dynamic/13700 N Static Load

  • Item#: 207KL-P01
  • Mfr#: 207KL
  • UPC: 087796040861
    • Extra width inner-ring provides greater shaft support
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Bearings in the 200 series bearings feature a close dimensional balance between bore, outside diameter and width. These characteristics make them well-suited for a broad range of applications involving light to medium loads combined with relatively high-speeds. Wide-type 200 series rubber seal(W200PP) and mechani-seal(W200KLL) bearings are made with standard bores and outside diameters, but in widths equal to the corresponding sizes of double-row bearings. This series offers a larger support area for shaft and housing contact and extra space for lubricant.

Fafnir® Radial Deep Groove Ball Bearing, Light Round Bore, Series: 200, 35 mm Bore Dia, 72 mm Outside Dia, 1 Row, 21 mm W, Single Sealed Closure, 29000 N Dynamic/13700 N Static, Steel Bearing, Rubber Seal, Steel Cage, 6540 rpm Maximum, -30 to 275 deg F, Uncoated

SPECIFICATIONS

Series      :      200
Bearing Material      :      Steel
Finish      :      Uncoated
Load Capacity      :      29000 N Dynamic/13700 N Static
Maximum Speed      :      6540 rpm
Outside Diameter      :      72 mm
Number of Rows      :      1
Seal Material      :      Rubber
Width      :      21 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_3M205WOP8PRBDBE8350_Catalog.pdf
