4Y4GD8-20GX

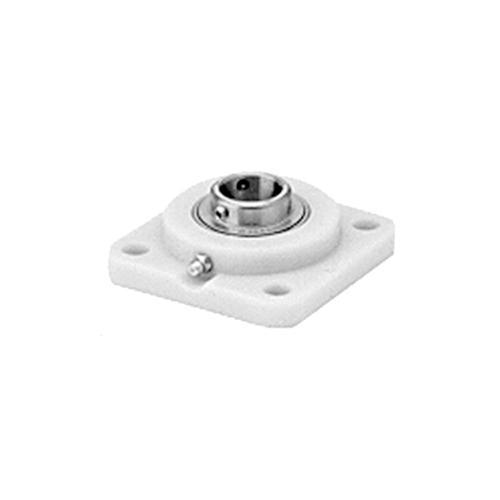

EDT 4Y4GD8-20GX 4Y Classic Series Cylindrical Bore ER Style Open End Self-Aligning Single Row Standard Duty Ball Bearing Assembly, 1.25 in Dia Bore, 3-1/4 in L Bolt Center-to-Center, 4.6 in Dia Bolt Circle, 4-Bolt Flange Mount
- CP#:
- Item#: 4Y4GD8-20GX
- Mfr#: 4Y4GD8-20GX
- UPC: 883450889391
- Stainless steel ball bearing inserts with setscrew locking, metal cage and double lip seal for higher ingress protection
- Hygienic construction (smooth surface, laser marking, co-molded bushings) and metal cage for higher food safety
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed with corrosion-resistant materials and food-grade lubricant, the product can withstand aggressive wash-downs management and a variety of wet and dry contaminants. The result enhanced reliability that helps extend bearing life, improve production uptime and most importantly elevate food safety.
EDT, 4Y4GD8-20GX, Ball Bearing Assembly, Cylindrical Bore ER Style Open End Self-Aligning Single Row Standard Duty, Series: 4Y Classic Series, 1.25 in Bore, 3-1/4 in Bolt Center-to-Center Length, 4.6 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 4.25 in OAL/2.441 in OD Overall Length/Diameter, 1.53 in Overall Height, Set Screw Locking Device, Stainless Steel Bearing, Silicon Rubber Seal, 3720 lb Dynamic/2040 lb Static Load, -4 to 200 deg F
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-1/4 in |
| Series | : | 4Y Classic Series |
| Bolt Circle Diameter | : | 4.6 in |
| Bearing Material | : | Stainless Steel |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 3720 lb Dynamic/2040 lb Static |
| Overall Height | : | 1.53 in |
| Inside Diameter | : | 1.25 in |
| Overall Length/Diameter | : | 4.25 in OAL/2.441 in OD |
| Seal Material | : | Silicon Rubber |
| Measurement System | : | Imperial |
