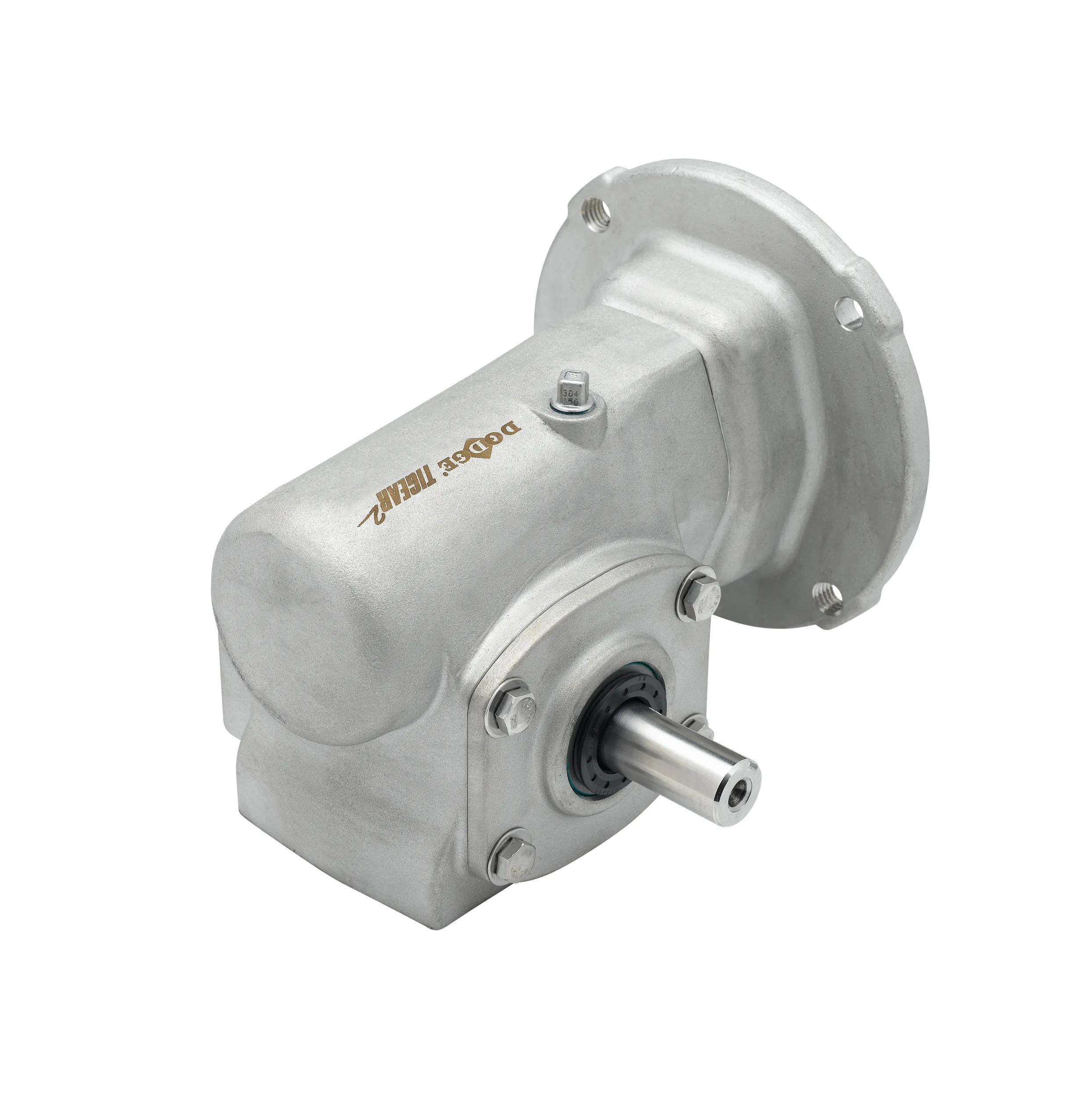

SS30Q10L18
STAINLESS STEEL TIGEAR-2 REDUCER
- CP#:
- Item#: SS30Q10L18
- Mfr#: SS30Q10L18
- UPC: 78247705197
- Worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- New rounded housing design prevents accumulation of material or liquid
- Laser etched nameplate
- Tapered roller bearings on output shaft
- Critical mounting dimensions are the same as standard Tigear-2® reducers
- 300 series stainless steel construction
- XT harsh duty output seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® Ultra-Kleen® Tigear-2® is an all stainless steel worm gear reducer engineered for long life in sanitary washdown environments. Capable of withstanding high pressure washdowns and caustic chemicals, Ultra-Kleen® Tigear-2® is the ideal solution for food handling industrial applications.
Dodge® Tigear-2® Ultra-Kleen® Right Angle Washdown Speed Reducer, Size 30, 10:1 Gear Ratio, 7.85 hp, Quill Input, Solid A Shaft Output, 1-3/8 in Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2347 in-lb, 3 in Centre Distance, 5/16 in L x 5/16 in W x 3 in H Keyway, 60 to 95 % Efficiency, Left Hand, Synthetic Oil Lubrication, Stainless Steel, 11.38 in L x 13.5 in W x 10.75 in H
SPECIFICATIONS
| Material | : | Stainless Steel |
| Output Size | : | 1.3750 In Dia x 3.2000 In L |
| Mounting Type | : | Unspecified |
| Input Type | : | Quill |
| Output Type | : | Left |
| Gear Ratio | : | 10:1 |
| Rotation Type | : | Left Hand |
| Lubrication Type | : | PAG, Standard Temperature |
| Input Maximum Speed | : | 1750 rpm |
| Keyway Size | : | 5/16 in L x 5/16 in W x 3 in H |
| Type | : | Gearbox (Gearbox Component) |
| Dimensions | : | 11.38 in L x 13.5 in W x 10.75 in H |
| Efficiency | : | 60 to 95 % |
| Horsepower | : | 7.85 hp |
| Output Maximum Speed | : | 175 rpm |
| Torque Rating | : | 2347 in-lb |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/123cd365c941bdd0/original/Tigear-2.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/3d1672ad63baab41/original/Get-Tigear-Tough.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/6116da637eb3e641/original/MN16016-Tigear-2-Stainless-Steel-Torque-Arm.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/62fd7f1142816187/original/Metric-Tigear-2.pdf
