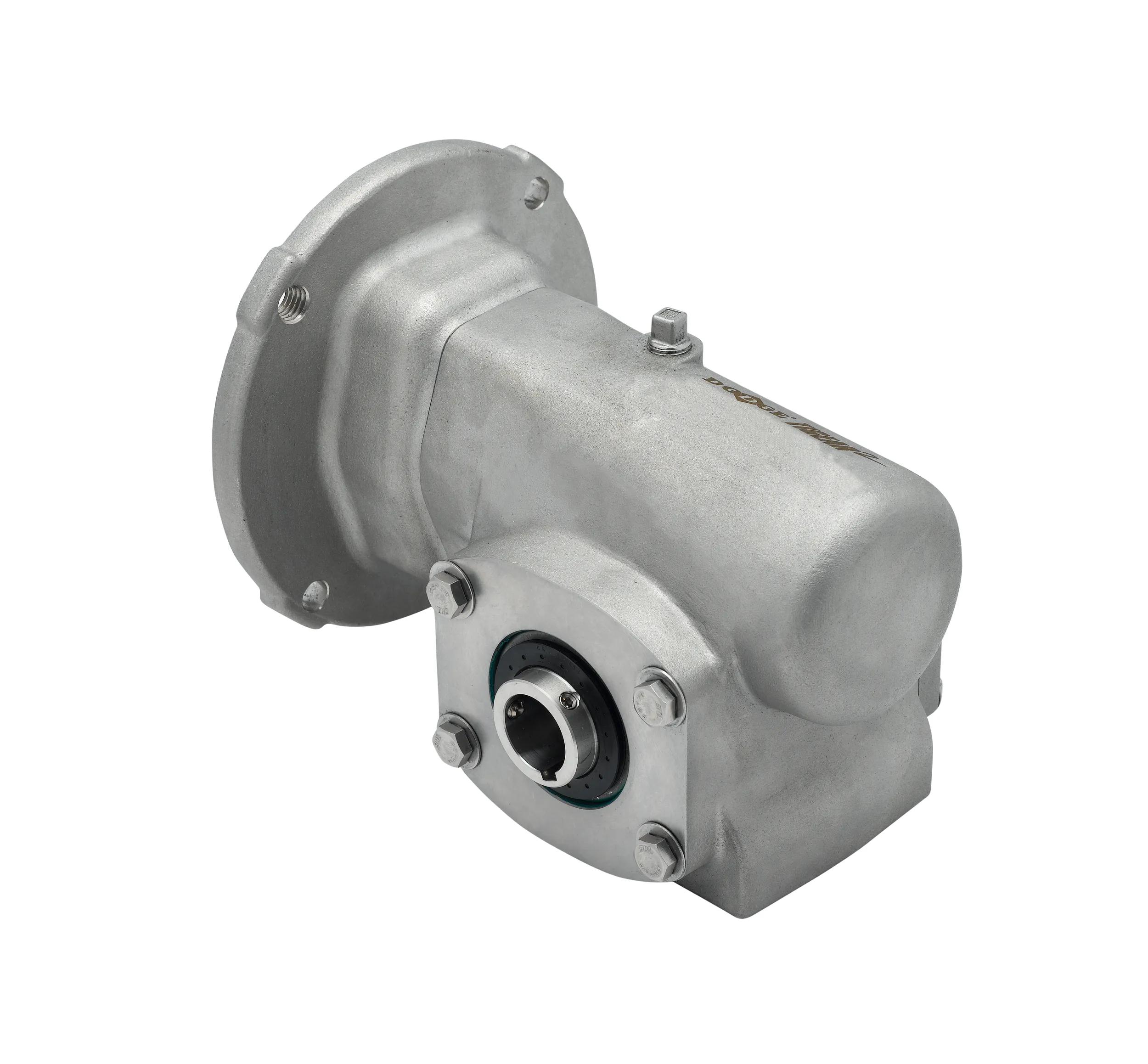

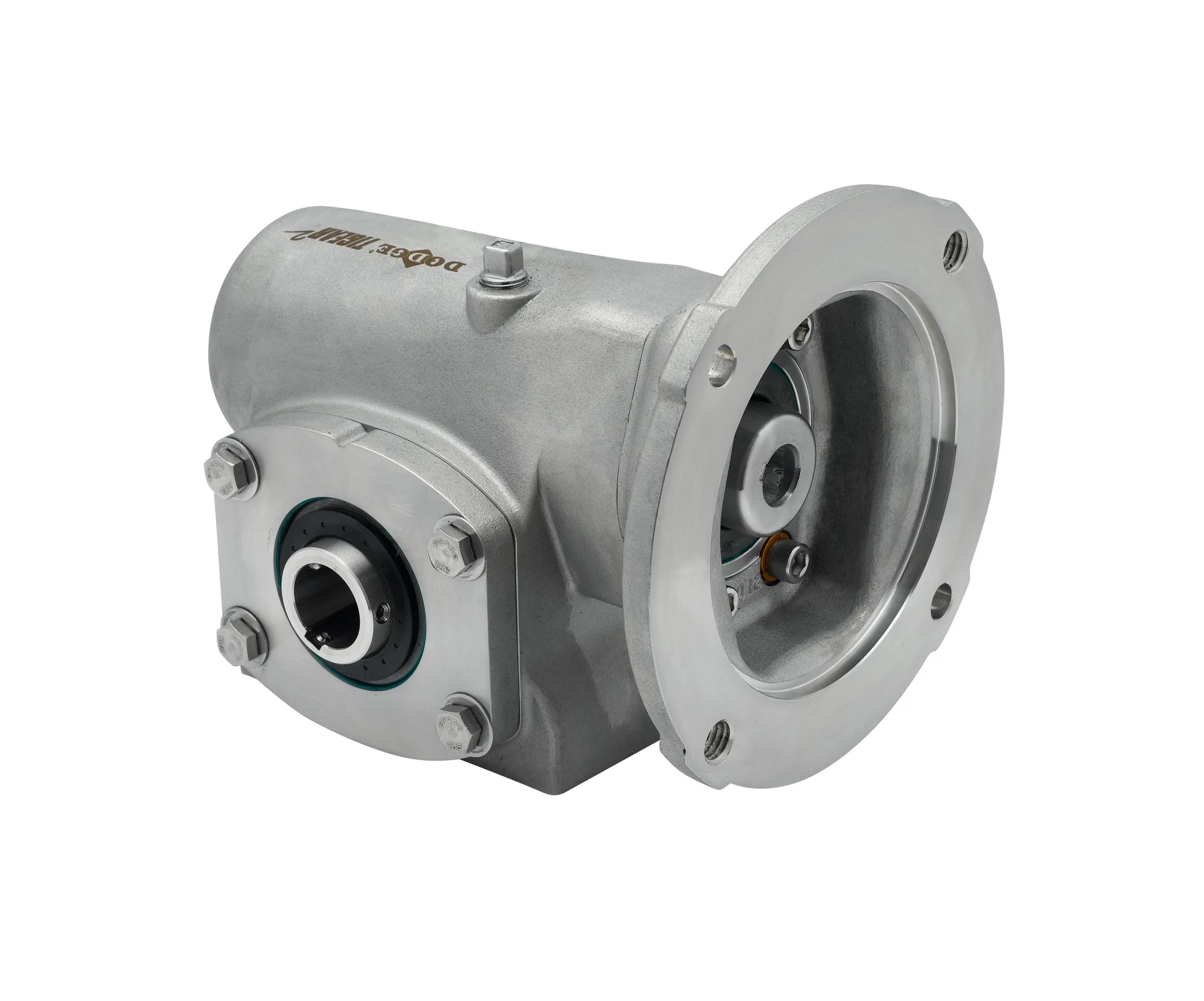

SS20Q20H14
STAINLESS STEEL TIGEAR-2 REDUCER
- CP#:
- Item#: SS20Q20H14
- Mfr#: SS20Q20H14
- UPC: 78247704539
- Worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- New rounded housing design prevents accumulation of material or liquid
- Laser etched nameplate
- Tapered roller bearings on output shaft
- Critical mounting dimensions are the same as standard Tigear-2® reducers
- 300 series stainless steel construction
- XT harsh duty output seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® Ultra-Kleen® Tigear-2® is an all stainless steel worm gear reducer engineered for long life in sanitary washdown environments. Capable of withstanding high pressure washdowns and caustic chemicals, Ultra-Kleen® Tigear-2® is the ideal solution for food handling industrial applications.
Dodge® Tigear-2® Ultra-Kleen® Right Angle Washdown Speed Reducer, Size 20, 20:1 Gear Ratio, 1.99 hp, Quill Input, Hollow Shaft Output, 1-1/4 in Output, 88 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 796 in-lb, 2 in Centre Distance, 3/16 in L x 3/16 in W x 1-1/2 in H Keyway, 60 to 95 % Efficiency, Synthetic Oil Lubrication, Stainless Steel, 8.6 in L x 5.7 in W x 7.5 in H
SPECIFICATIONS
| Material | : | Stainless Steel |
| Output Size | : | 1-1/4 in |
| Mounting Type | : | Unspecified |
| Input Type | : | Quill |
| Output Type | : | Hollow |
| Gear Ratio | : | 20:1 |
| Lubrication Type | : | PAG, Standard Temperature |
| Input Maximum Speed | : | 1750 rpm |
| Keyway Size | : | 3/16 in L x 3/16 in W x 1-1/2 in H |
| Type | : | Gearbox (Gearbox Component) |
| Dimensions | : | 8.6 in L x 5.7 in W x 7.5 in H |
| Efficiency | : | 60 to 95 % |
| Horsepower | : | 1.99 hp |
| Output Maximum Speed | : | 88 rpm |
| Torque Rating | : | 796 in-lb |
