H10C25S01719

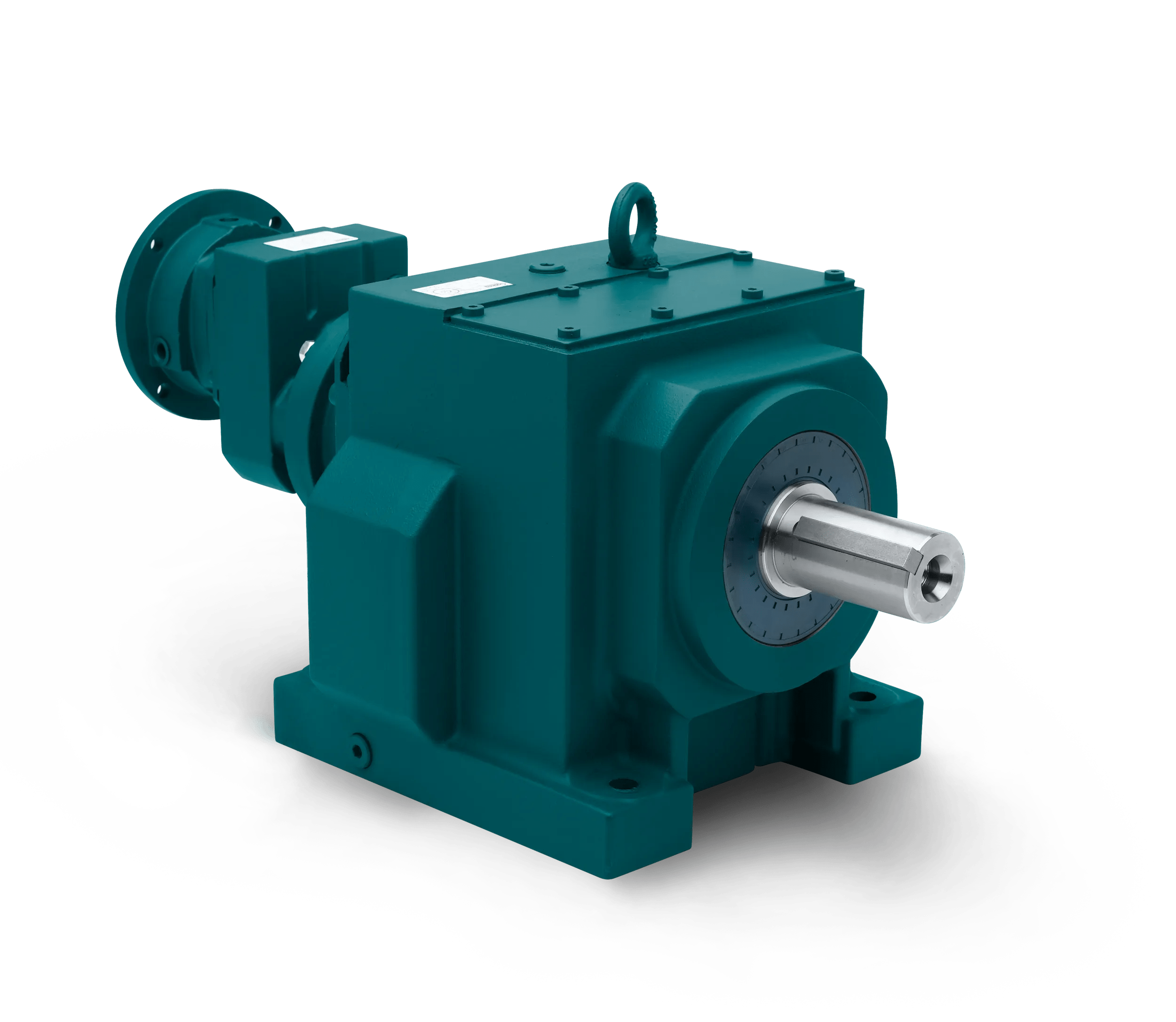

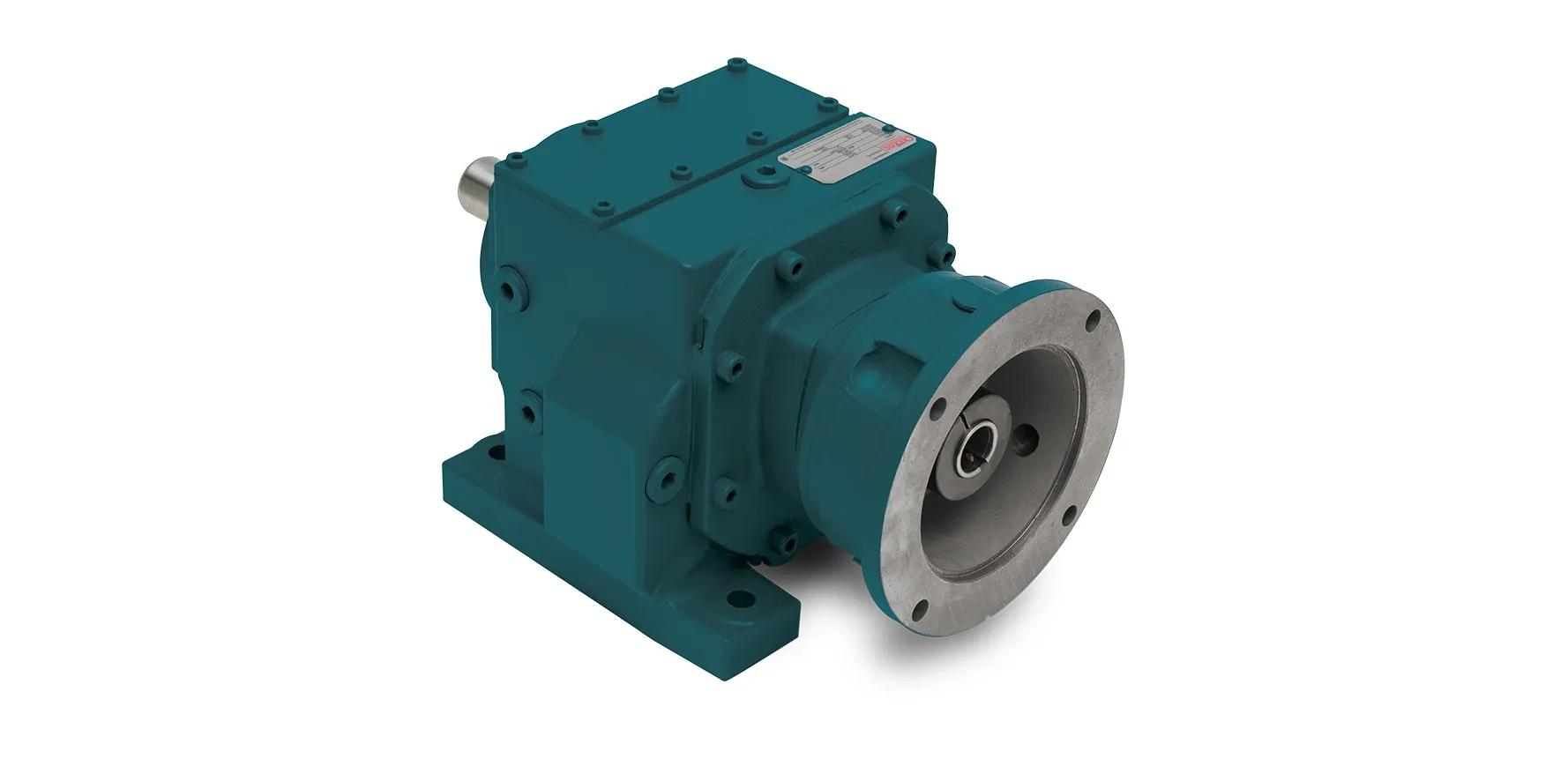

Dodge® Quantis® H10C25S01719 Double Reduction In-Line Helical Gear Reducer, Clamp Collar Input, Solid Inch Shaft Output, 40.41 hp, 17.19:1 Gear, 25015 in-lb Torque Rating
- CP#:
- Item#: 202457
- Mfr#: H10C25S01719
- UPC: 781568485743
- Size 108 in-line helical
- All gearboxes are factory filled with Mobilgear 600 XP 220
- Reducer housings are constructed of class 30 gray iron with cast internal ribbing for added strength
- Spring loaded double lip seals of nitrile rubber (NBR) material
- High strength carbon steel shafts
- Gearing is of single helical design and ground to provide ellipsoid tooth which eliminates tooth wearing and assures meshing in the strongest tooth area
- NEMA clamp collar design
- Nitrile input and output lip seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The Dodge® Quantis® product line is a modular gear drive engineered for flexibility and power density in a compact housing design. A wide variety of mounting configurations and accessories make the Quantis® an ideal solution for many industrial applications.
Dodge® Quantis® In-Line Helical Gear Reducer, Double Reduction, 17.19:1 Gear Ratio, 40.41 hp, Clamp Collar Input, Solid Inch Shaft Output, 2-3/8 in Output, 1750 rpm Input Maximum Speed, 25015 in-lb, 3-15/16 in L x 5/8 in W x 5/8 in H Keyway, 98 % Efficiency, Mobilgear 600 Lubrication, C-Face Footed Mount, Cast Gray Iron, 22.84 in L x 16.14 in W x 16.2 in H
SPECIFICATIONS
| Mounting Type | : | C-Face Footed |
| Output Size | : | 2.3750 In Dia x 4.7200 In L |
| Material | : | Cast Iron |
| Input Type | : | Clamp Collar |
| Output Type | : | Solid |
| Gear Ratio | : | 17.19:1 |
| Dimensions | : | 22.84 in L x 16.14 in W x 16.2 in H |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | Mobilgear 600 |
| Efficiency | : | 98 % |
| Keyway Size | : | 3-15/16 in L x 5/8 in W x 5/8 in H |
| Type | : | Double Reduction |
| Horsepower | : | 40.41 hp |
| Torque Rating | : | 25015 in-lb |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/5e52afe7941db33a/original/Quantis.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/61944039e5fef9d8/original/MN16008-ATEX-Certified-Quantis-ILH-RHB-MSM-Reducers-Zone-1.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/72c482cde111910f/original/Dodge-Quantis-Stock-Reducer-Solutions.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/f7cd654af6620b3/original/MN1616-Quantis-In-Line-Helical-Reducer.pdf
