B8C21S02553
Dodge® Quantis® B8C21S02553 Right Angle Helical Bevel Reducer, Clamp Collar Input, Solid A Left Output, 15.88 hp, 25.53:1 Gear, 14604 in-lb Torque Rating
- CP#:
- Item#: 332214
- Mfr#: B8C21S02553
- UPC: 782475139668
- Reducer housings are constructed of class 30 gray iron with cast internal ribbing for added strength
- Multiple output shaft interfaces
- Spring loaded double lip seals of nitrile rubber (NBR) material
- All seals are rubber coated to eliminate seal-to-bore joint leakage
- High strength carbon steel shafts
- RHB reducers also utilize spiral bevel gearing
- Gear material is alloy steel
- Bevel gears are hardened and lapped
- 20 deg pressure angle to minimize noise
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

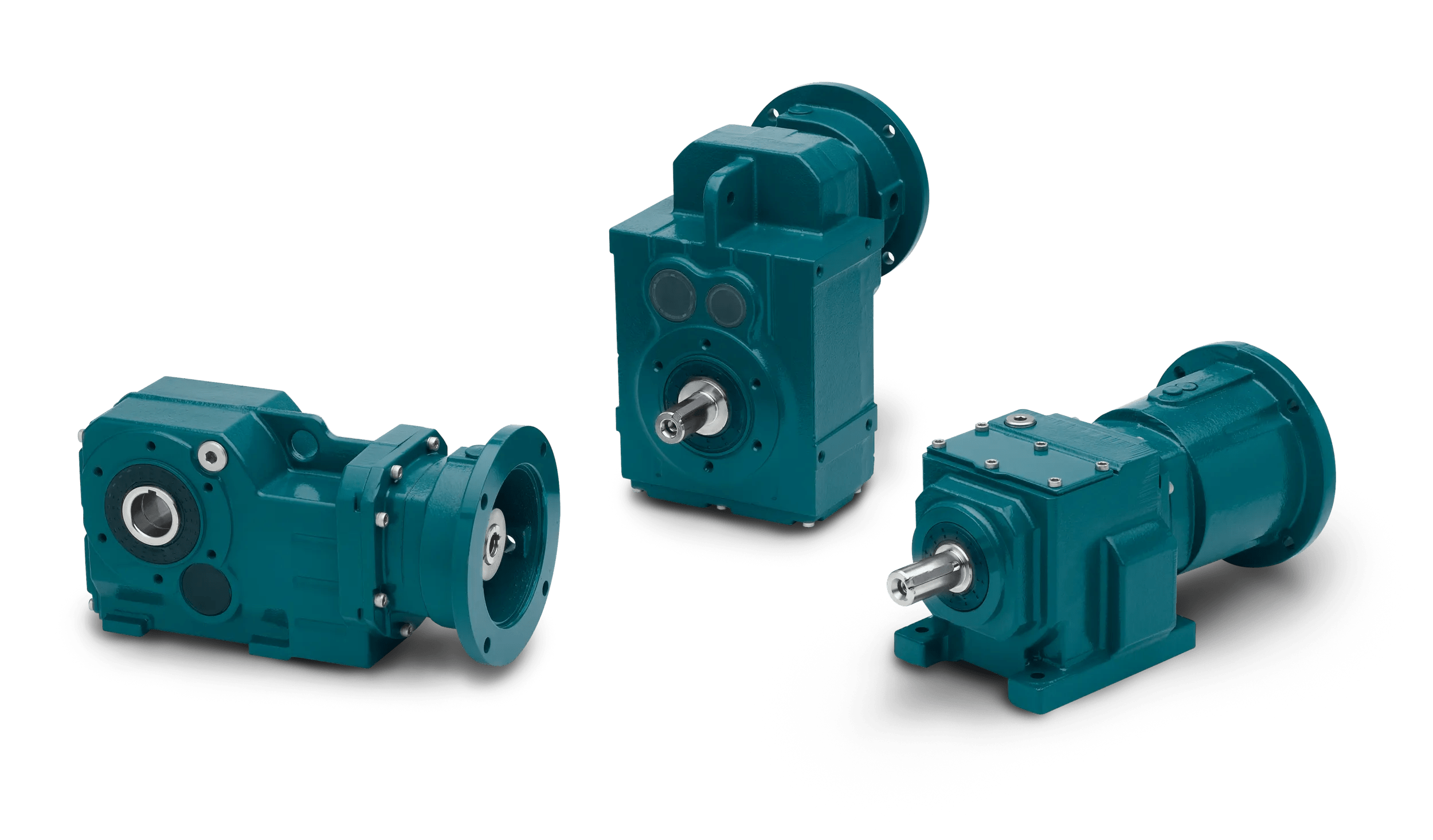

The Dodge® Quantis® product line is a modular gear drive engineered for flexibility and power density in a compact housing design. A wide variety of mounting configurations and accessories make the Quantis® an ideal solution for many industrial applications. The Dodge® exclusive E-Z-Kleen® finish with stainless steel paint and XT output seals is available for tough washdown applications.
Dodge® Quantis® Right Angle Helical Bevel Reducer, 25.53:1 Gear Ratio, 15.88 hp, Clamp Collar Input, Solid A Left Output, 2 x 3.94 in Output, 1750 rpm Input Maximum Speed, 14604 in-lb Torque, 3-1/4 in L x 1/2 in W x 1/2 in H Keyway, 94 % Efficiency, CW/CCW Rotation, Mobilgear 630 Lubrication, C-Face Footed Mounting, Cast Iron, Gray Painted, 21.85 in L x 12.005 in W x 11.61 in H
SPECIFICATIONS
| Output Size | : | 2.0000 In Dia x 3.9400 In L |
| Mounting Type | : | C-Face Footed |
| Material | : | Cast Iron |
| Input Type | : | Clamp Collar |
| Output Type | : | Solid |
| Gear Ratio | : | 25.53:1 |
| Dimensions | : | 21.85 in L x 12.005 in W x 11.61 in H |
| Input Maximum Speed | : | 1750 rpm |
| Finish | : | Gray Painted |
| Rotation Type | : | CW/CCW |
| Lubrication Type | : | Mobilgear 630 |
| Efficiency | : | 94 % |
| Keyway Size | : | 3-1/4 in L x 1/2 in W x 1/2 in H |
| Horsepower | : | 15.88 hp |
| Torque Rating | : | 14604 in-lb |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/5e52afe7941db33a/original/Quantis.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/61944039e5fef9d8/original/MN16008-ATEX-Certified-Quantis-ILH-RHB-MSM-Reducers-Zone-1.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/6d8a410fa8c9a879/original/MN1618-Quantis-RHB-Reducer.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/72c482cde111910f/original/Dodge-Quantis-Stock-Reducer-Solutions.pdf
