Dodge®
444054

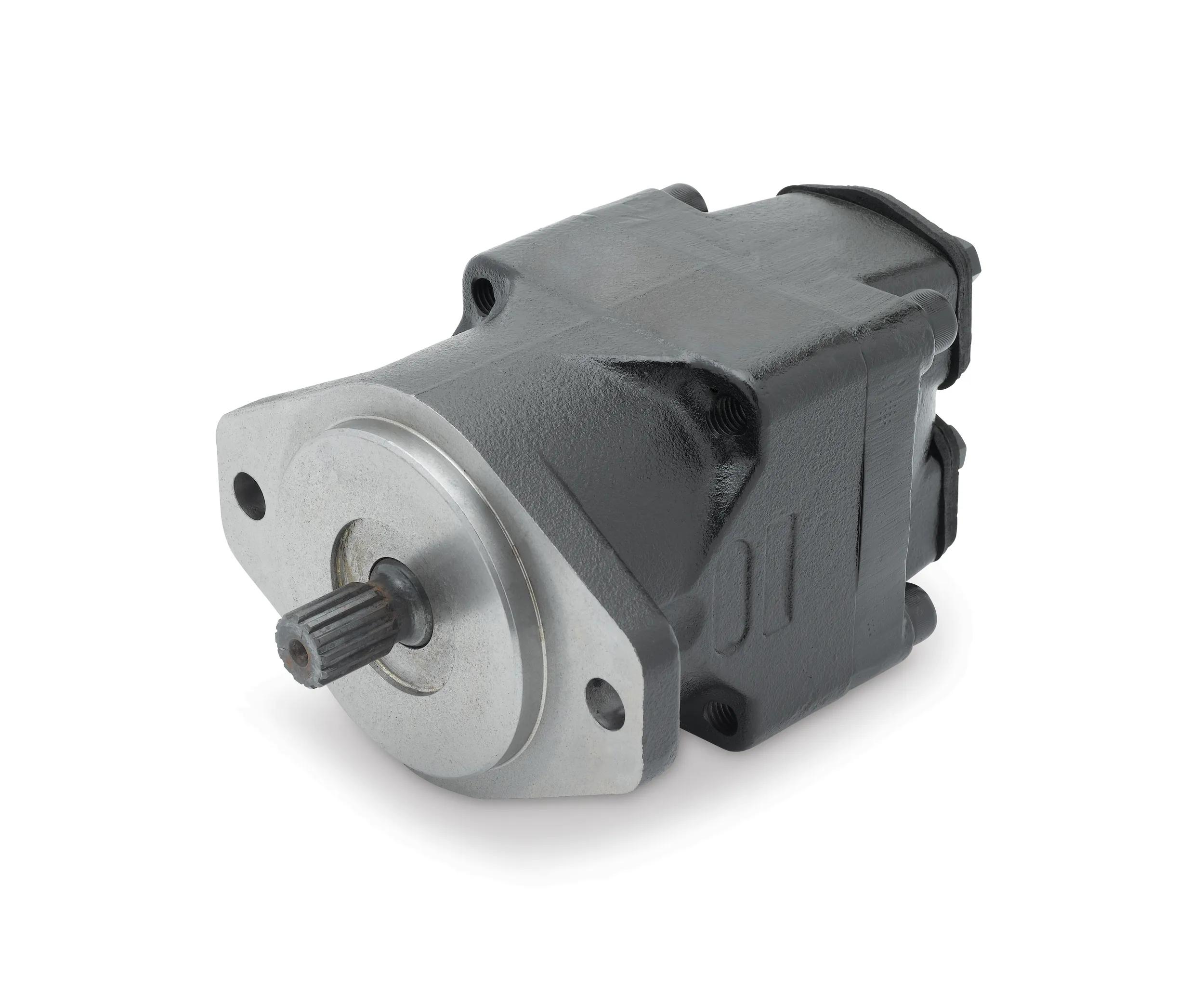

B30 HYDROIL VANE MOTOR
- Item#: B30 HYDROIL VANE MOTOR
- Mfr#: 444054
- UPC: 78247515106
- Capacities fractional to 700 hp
- Output speeds through 400 rpm
- Dependable performance
- Trouble free maintenance
- Up front installation savings
- Easier, more accurate drive alignment
- Ratios up to 210:1
- Efficient helical gear tooth design
- 100 rpm minimum speed
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hydroil™ vane motors are superior single stage vane type fluid motor. A series of internal ports admit oil to and carry it from the power element. Complete hydraulic balance of the assembly contributes to the mechanical efficiency and long life of these motors as well as to their unusually quiet operation. Other exclusive features assure a minimum of friction and efficient valving action regardless of operating speeds. Hydroil™ vane motors can be run in either direction of rotation.
Dodge® Hydroil™ Vane Motor, Series: B30, 7/8 in Shaft Diameter, 1-5/8 in Shaft Length, CW/CCW Rotation, 51.3 in-lb Running/46.2 in-lb Starting Torque, Fluid Motor, 2-Bolt Flange Mounting, Cast Iron Housing Material, 8-11/16 in L x 4-3/4 in H Dimensions
SPECIFICATIONS
| Dimensions | : | 8-11/16 in L x 4-3/4 in H |
| Housing Material | : | Cast Iron |
| Motor Type | : | Fluid |
| Mounting Type | : | 2-Bolt Flange |
| Rotation Type | : | CW/CCW |
| Series | : | B30 |
| Shaft Diameter | : | 7/8 in |
| Shaft Length | : | 1-5/8 in |
| Type | : | Hydroil Motor (Gearbox Component) |
| Torque Rating | : | 51.3 in-lb Running/46.2 in-lb Starting |
