- Dodge® 398019
398019

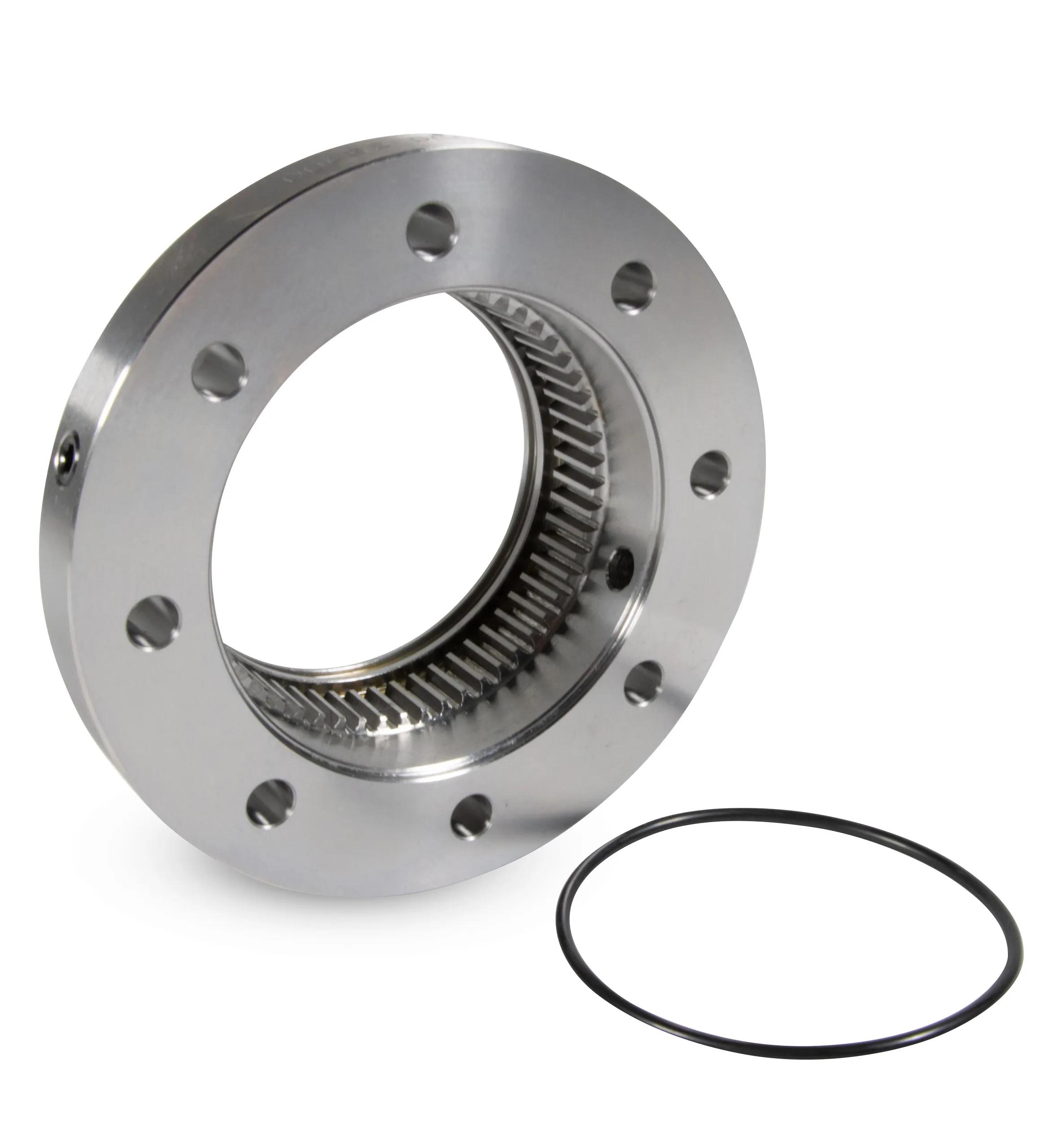

DGC 4.5 SLEEVE EXPOSED BOLT
- CP#:
- Item#: 398019DOD
- Mfr#: 398019
- UPC: 78247749634
- Min. Order Qty: 1
- Qty. Interval: 1
SPECIFICATIONS
| Coupling Component | : | Sleeve |
| Type | : | Metallic |
| Angular Misalignment | : | 1.5000 deg |
| Bore Length | : | Unspecified |
| Coupling Size | : | 4.5 |
| Coupling Type | : | Metallic |
| Flange Material | : | Steel |
| Horsepower Per 100 Rat | : | 480.0000 hp |
| Lubrication | : | Grease |
| Maximum Speed | : | 2700 rpm |
| Maximum Temperature Rating | : | 250.0000 deg F |
| Minimum Temperature Rating | : | -30.0000 deg F |
| Parallel Misalignment | : | 0.1750 in |
| Rated Torque | : | 302500.0000 in-lb |
| Tightening Torque | : | 2650 in-lb |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/3e4b2c4976b55781/original/PT-components-engineering-catalog-Gear-couplings.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/3f0aaa98870107b5/original/Couplings-mechanical-soft-starts-catalog.pdf -
Regulatory Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/423cbfbe7b520b37/original/FM4088-06-24_Dodge-Coupling-Grease-MSDS.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/67ca4d9efb4dde38/original/MN4026-Gear-Couplings.pdf
