35QZ05R18WP

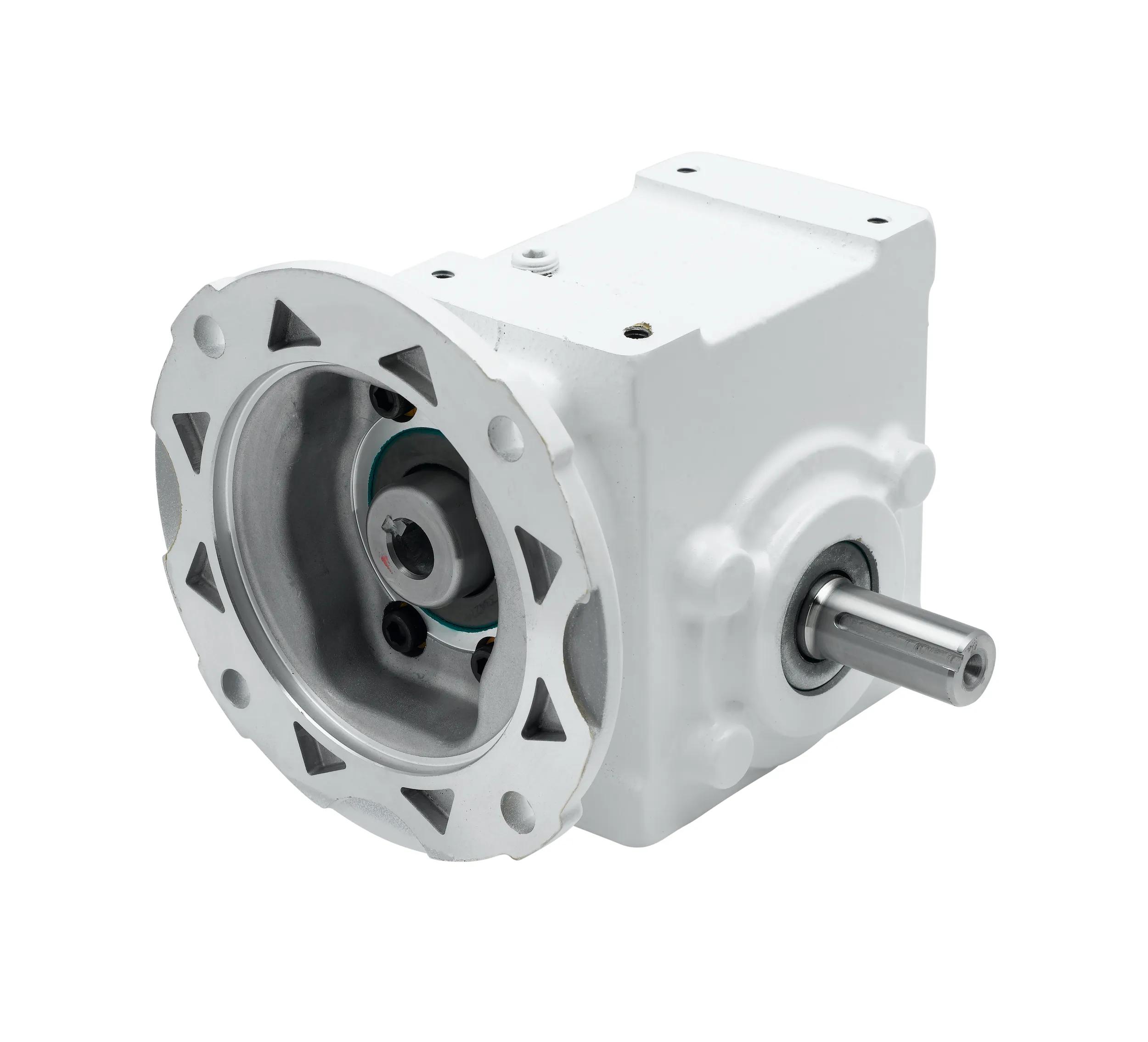

TIGEAR-2 E-Z KLEEN REDUCER-WHITE
- CP#:
- Item#: 35QZ05R18WP
- Mfr#: 35QZ05R18WP
- UPC: 78247623151
- A coating system which provides greater than three times the corrosion resistance of standard epoxy painted units
- 2-piece harsh duty output seals
- Generous step between diameter of output bearing journal and diameter of seal journal prevents bearing from scuffing seal journal during assembly
- Bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- Worm shaft machining process increases gear precision and accuracy by more than twice the normal
- Seal journals are held to exacting tolerances for diameter and surface finish
- Precise plunge grinding process eliminates invisible lead and assures cool running, long life seals
- Unique internal design of input quill, along with a special factory applied anti-seize compound and helps to reduce chances for fretting corrosion with motor shaft
- State of the art computer modeling and optimization of multiple gear parameters in Tigear-2® gear geometry allow higher torque capacity, greater efficiency and cooler operating temperatures
- Long life and low maintenance
- 300 series stainless steel hollow output shafts and stainless hardware
- For use with conveyors, mixer drives and general industrial machineries
- Space saving quill style input reducers for NEMA C-face motors
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® TIGEAR-2® offers an exclusive E-Z Kleen® protection system for washdown environments. E-Z Kleen® reducers are designed to operate in washdown environments using harsh chemicals and high temperature sprays. The entirely corrosion resistant construction make TIGEAR-2® E-Z Kleen® an ideal solution for food handling industrial applications. TIGEAR-2® E-Z Kleen® reducers offer superior corrosion resistance and sealing to meet the harsh washdown applications associated with the food and beverage industry.
Dodge® E-Z Kleen® Tigear-2® Right Angle Worm Gear Speed Reducer, Size 35 Washdown Duty, 5:1 Gear Ratio, 15.18 hp Mechanical Input/14.4 hp Mechanical Output/15.51 hp Thermal Input, C-Face Quilled Input, Solid B Shaft Output, 1.4995 in Output, 350 rpm Output Maximum, 1750 rpm Input Maximum, 2593 in-lb Torque, 3-1/2 in Centre Distance, 0.375 x 0.375 x 2.93 in Keyway, 60 to 95 % Efficiency, Right Hand Rotation, Class H1 Food Grade Synthetic Lubrication, 180TC Mounting, Gray Iron, White Painted, 12.5 in L x 11.99 in H Dimensions
SPECIFICATIONS
| Material | : | Cast Iron |
| Mounting Type | : | Unspecified |
| Output Size | : | 1.5000 In Dia x 3.5100 In L |
| Input Type | : | Quill |
| Output Type | : | Right |
| Gear Ratio | : | 5:1 |
| Type | : | Gearbox (Gearbox Component) |
| Dimensions | : | 12.5 in L x 11.99 in H |
| Efficiency | : | 60 to 95 % |
| Keyway Size | : | 0.375 x 0.375 x 2.93 in |
| Rotation Type | : | Right Hand |
| Finish | : | White Painted |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | PAG, Standard Temperature |
| Horsepower | : | 15.18 hp Mechanical Input/14.4 hp Mechanical Output/15.51 hp Thermal Input |
| Output Maximum Speed | : | 350 rpm |
| Torque Rating | : | 2593 in-lb |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/123cd365c941bdd0/original/Tigear-2.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/1bdfb3bf8fc88245/original/MN1649-Tigear-2-Right-Angle-Quill-C-Face-3-Piece-Coupled-C-Face-Separate-Speed-Reducers.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/3eca0ccb1d8b31a5/original/MN1614-Tigear-2-Output-Shaft-Reversal.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/62fd7f1142816187/original/Metric-Tigear-2.pdf
