247396
TA7ML LONG MOTOR MOUNT
- CP#:
- Item#: TA7ML
- Mfr#: 247396
- UPC: 78247538313
- Compactness, pre-drilled, economical and interchangeability
- Adjustable top plate
- Flexible mounting
- Rigid motor support
- Eliminates separate motor bases
- Fast and easy belt tensioning
- Accommodates standard NEMA motors
- Low cost and eliminates alignment problems
- Pre-drilled for belt guard attachment
- Fits screw conveyor drives
- Provide a compact and economical method of mounting electric motors on Torque-Arm® reducers
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

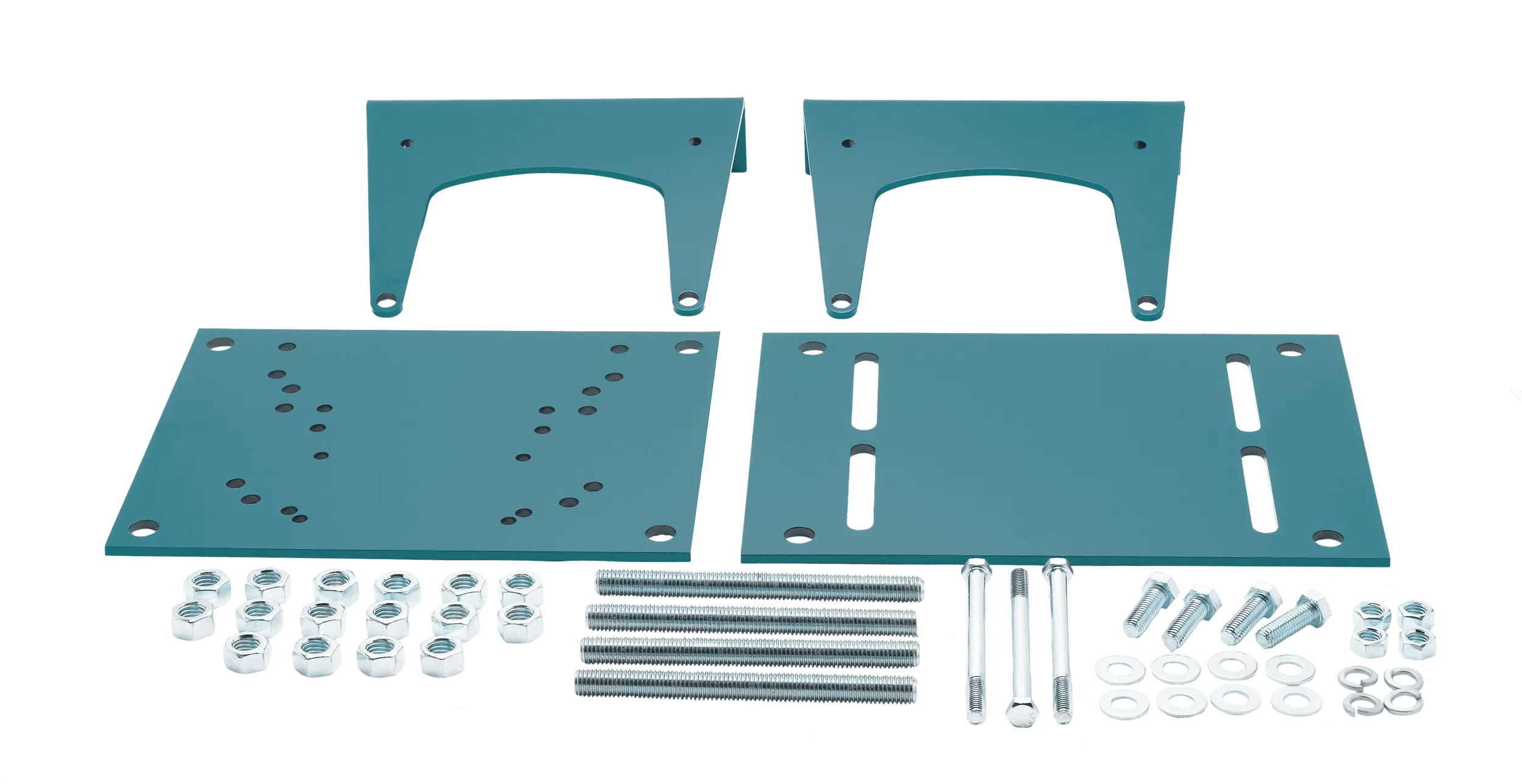

The TAML motor mount has longer support brackets, which allows for more clearance between the conveyor pulley and the bottom plate of the motor mount. The motor mount is a rugged all steel unit which requires no drilling and no foundation. It bolts directly to the top of the Torque-Arm® reducer and can be located in any position around the shaft. It permits easy belt tensioning and accommodates a wide variety of NEMA motor frames. All motor mount fasteners are supplied with zinc-plated finish as standard. Bolt hole configuration will also allow this mount to fasten to the top of a screw conveyor drive reducer of equivalent size.
Dodge® Motor Mount, Long, For Use With: Torque-Arm® Motor Frame 143T - 326T TXT7 Shaft Mount Speed Reducer, 22-1/2 in L x 19 in W, Steel, Zinc Plated
SPECIFICATIONS
| Material | : | Steel |
| Type | : | Motor Mount |
| Suitable For Use With | : | Torque-Arm® Motor Frame 143T - 326T TXT7 Shaft Mount Speed Reducer |
| Specifications | : | 22-1/2 in L x 19 in W |
| Finish | : | Zinc Plated |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/22e3c276b0280ee0/original/MN1704-Torque-Arm-TXT-E-and-Torque-Arm-II-TA-II-Reliability-Kits.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/396a535466320230/original/Reliability-Kits.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/648eac6ee41f40e6/original/MN16027-Torque-Arm-TXT-Double-Reduction-Tapered-Bushed-and-Straight-Bore-Speed-Reducers.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/76fbe38ed389aa8e/original/Torque-Arm.pdf
