244251

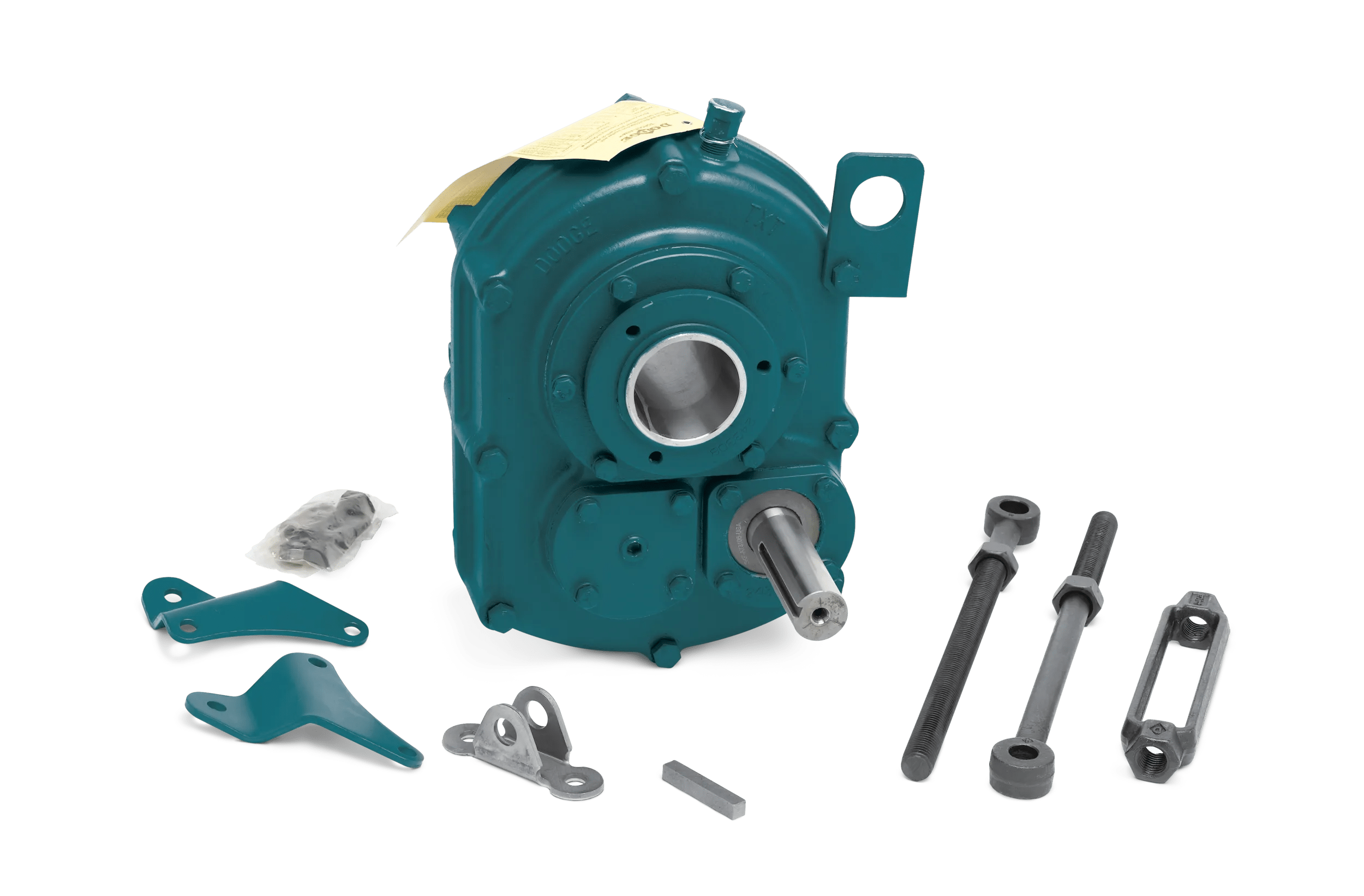

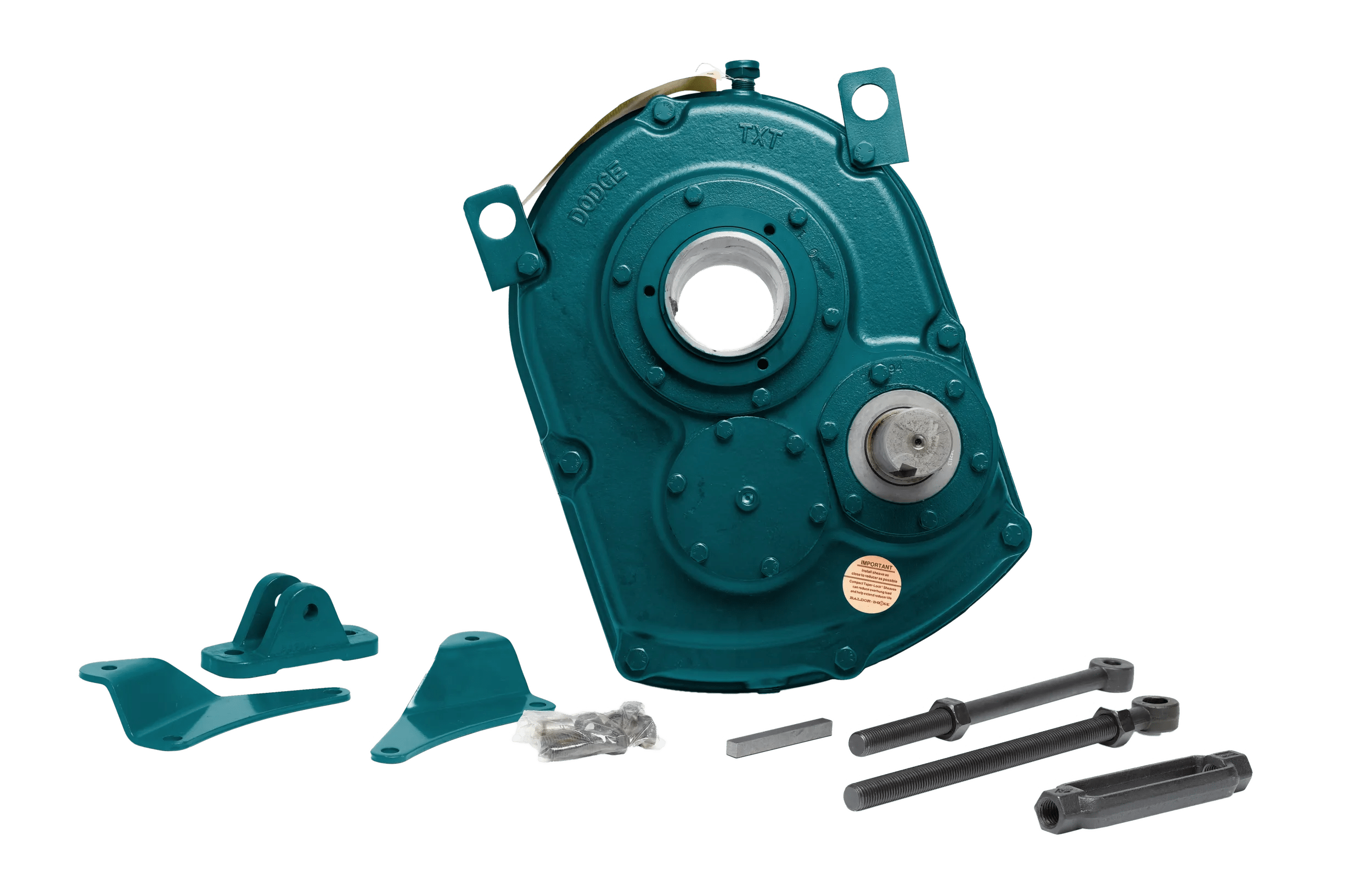

TXT425CT ABHS REDUCER
- CP#:
- Item#: TXT425BT
- Mfr#: 244251
- UPC: 78247586110
- Exclusive twin tapered bushings
- Precision, high-quality helical gearing
- Reliable anti-friction bearings and seals
- Efficient splash lubrication
- 100% factory noise and leak tested
- Rugged cast-iron efficient
- Heavy duty sealing system
- Steel motor mount system
- Perfect fit for harsh duty industries
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® Torque-Arm® (TXT) is a shaft mount helical gear reducer that mounts directly to the driven shaft. TXT is a proven gear reducer that can be installed in the toughest applications requiring long life. Many accessories are available to make this reducer suitable for a wide range of environments.
Dodge® Torque-Arm® Speed Reducer, Double Reduction, Series: TXT, 25:1 Gear Ratio, 19.3 hp, Taper Bushing Output, 85 rpm Output Maximum Speed, 2072 rpm Input Maximum Speed, 98.5 % Efficiency, Shaft Mount, Ductile Iron, Gray Painted
SPECIFICATIONS
| Reduction Type | : | Double Stage |
| Material | : | Cast Iron |
| Input Size | : | 1.4375 In Dia |
| Mounting Type | : | Shaft |
| Series | : | TXT |
| Input Type | : | Belt-Driven |
| Output Type | : | Tapered Bushed |
| Gear Ratio | : | 24.38:1 |
| Type | : | Gearbox (Gearbox Component) |
| Input Maximum Speed | : | 2072 rpm |
| Finish | : | Gray Painted |
| Efficiency | : | 98.5 % |
| Horsepower | : | 19.3 hp |
| Output Maximum Speed | : | 85 rpm |
DOCUMENTS
-
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/1dee44de8b277680/original/Inboard-Shaft-Guard.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/396a535466320230/original/Reliability-Kits.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/648eac6ee41f40e6/original/MN16027-Torque-Arm-TXT-Double-Reduction-Taper-Bushed-and-Straight-Bore-Speed-Reducers.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/76fbe38ed389aa8e/original/Torque-Arm.pdf
