2326FLANGE
TIGEAR-2 O/P FLANGE SIZES-23,26
- CP#:
- Item#: 2326FLANGE
- Mfr#: 2326FLANGE
- UPC: 78247575762
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

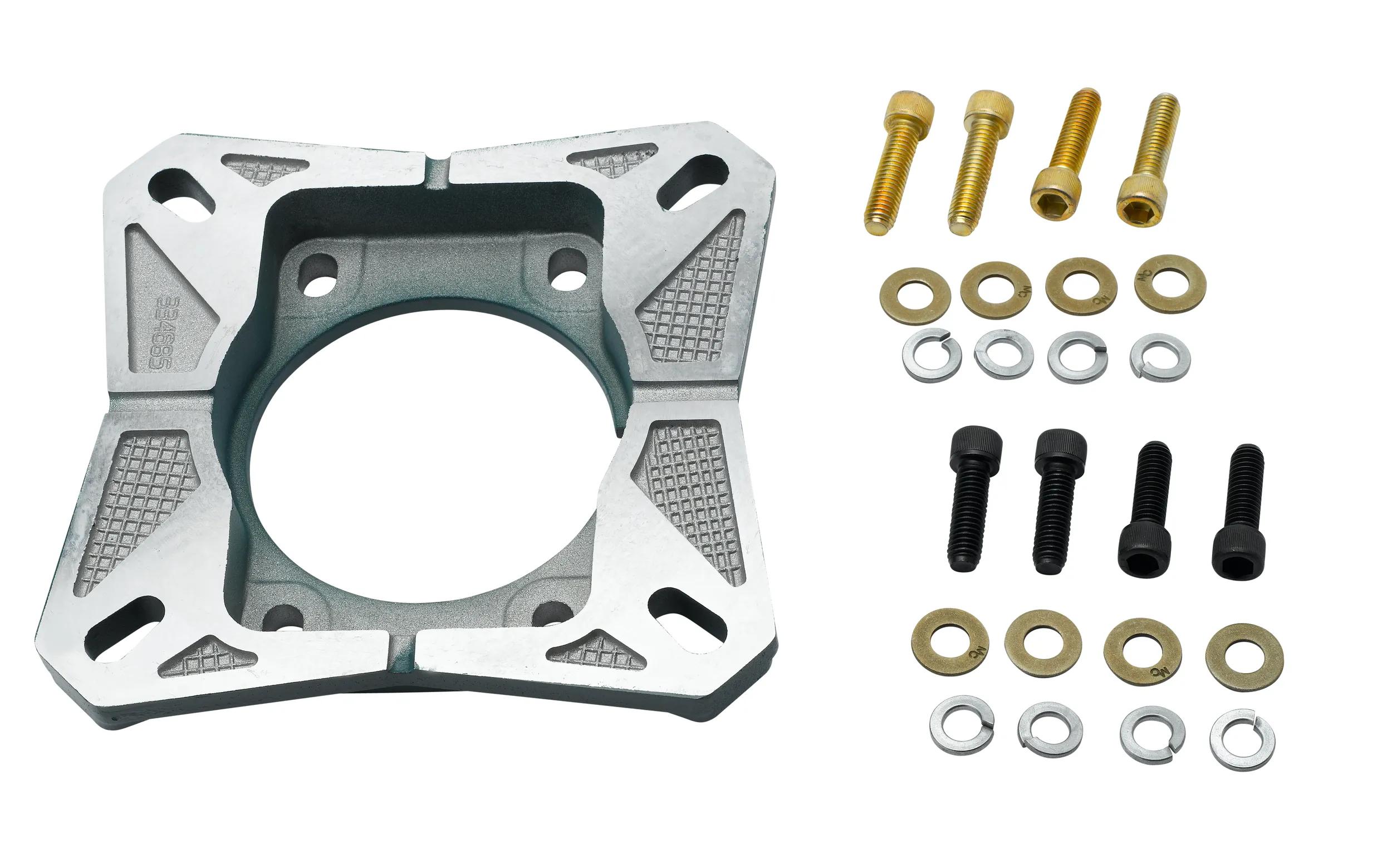

The output cast flange kit is used to mount hollow shaft reducers to a flat surface perpendicular to the output shaft. The flange may be substituted for a tie rod kit to restrain reactions. Each kit consists of a flange and required mounting hardware. The output flange kit can be mounted to either side of a hollow output reducer. When used with Grip-Tight® bushings, a single bushing with key must be used and located on the side opposite of the cast output flange.
Dodge® Output Flange Kit, For Use With: Tigear-2® Size 23 and 26 Tapered Bushing Speed Reducers, Cast Aluminum
SPECIFICATIONS
| Material | : | Cast Aluminum |
| Type | : | Output Flange |
| Suitable For Use With | : | Tigear-2® Size 23 and 26 Tapered Bushing Speed Reducers |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/123cd365c941bdd0/original/Tigear-2.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/1bdfb3bf8fc88245/original/MN1649-Tigear-2-Right-Angle-Quill-C-Face-3-Piece-Coupled-C-Face-Separate-Speed-Reducers.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/62fd7f1142816187/original/Metric-Tigear-2.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/a7366c547710463/original/MN1661-Tigear-2-Accessory-Kit.pdf
