13BRACKET
TIGEAR-2 OUTPUT BRACKET SIZE-13
- CP#:
- Item#: 13BRACKET
- Mfr#: 13BRACKET
- UPC: 78247575742
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

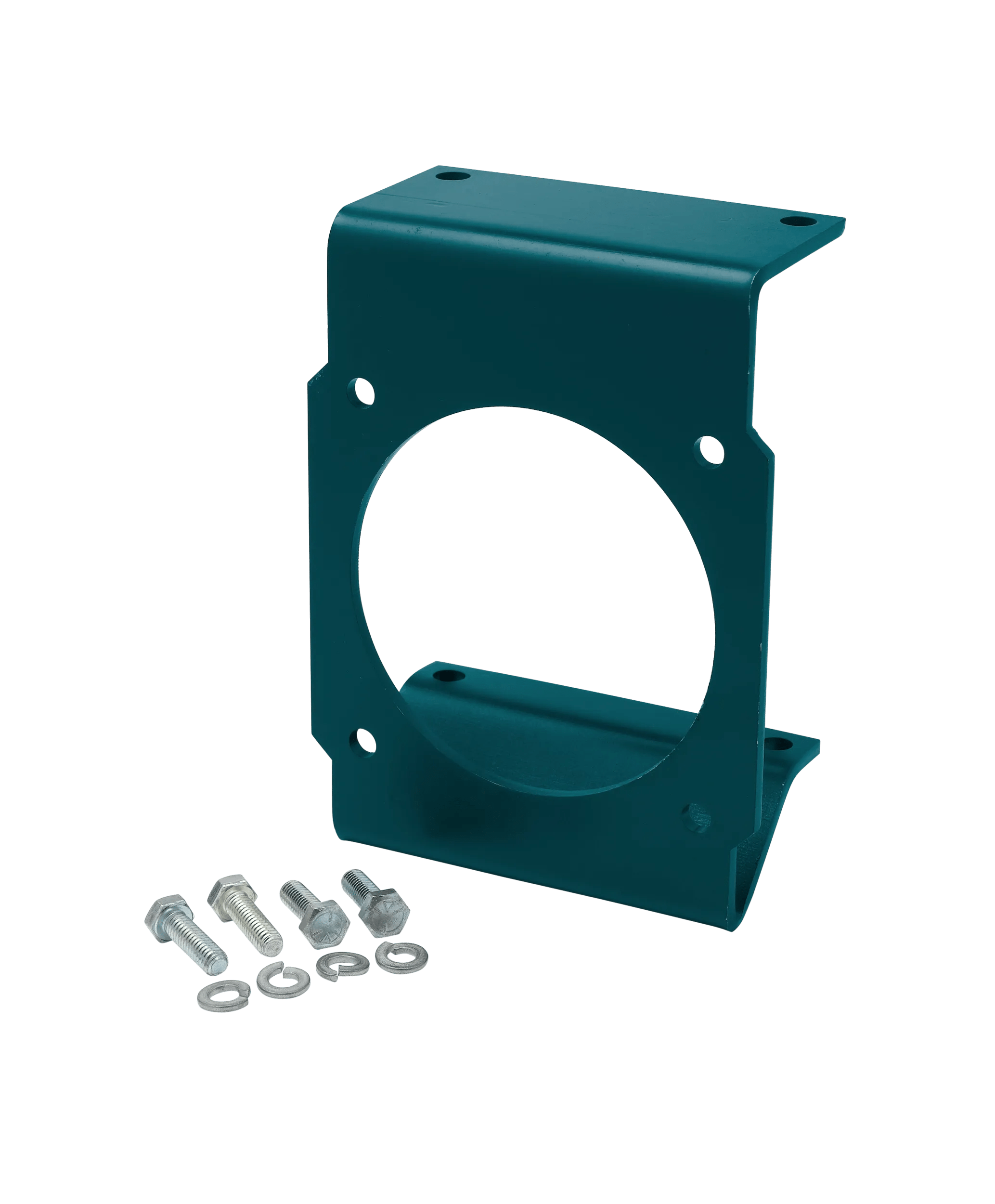

The output bracket kit is used to mount the reducer to a flat surface perpendicular to the output shaft. On hollow shaft units, an output bracket may be substituted for a tie rod kit to restrain reactions. Each kit consists of a bracket and required mounting hardware. The output bracket kit can be mounted to either side of the reducer.
Dodge® Output Bracket Kit, Fabricated, For Use With: Tigear-2® Size 13 Reducer
SPECIFICATIONS
| Type | : | Output Bracket |
| Suitable For Use With | : | Tigear-2® Size 13 Reducer |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/123cd365c941bdd0/original/Tigear-2.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/270c8479a0ce5bce/original/MN16001-Tigear-2-gear-reducers-Flange.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/62fd7f1142816187/original/Metric-Tigear-2.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/a7366c547710463/original/MN1661-Tigear-2-Accessory-Kit.pdf
