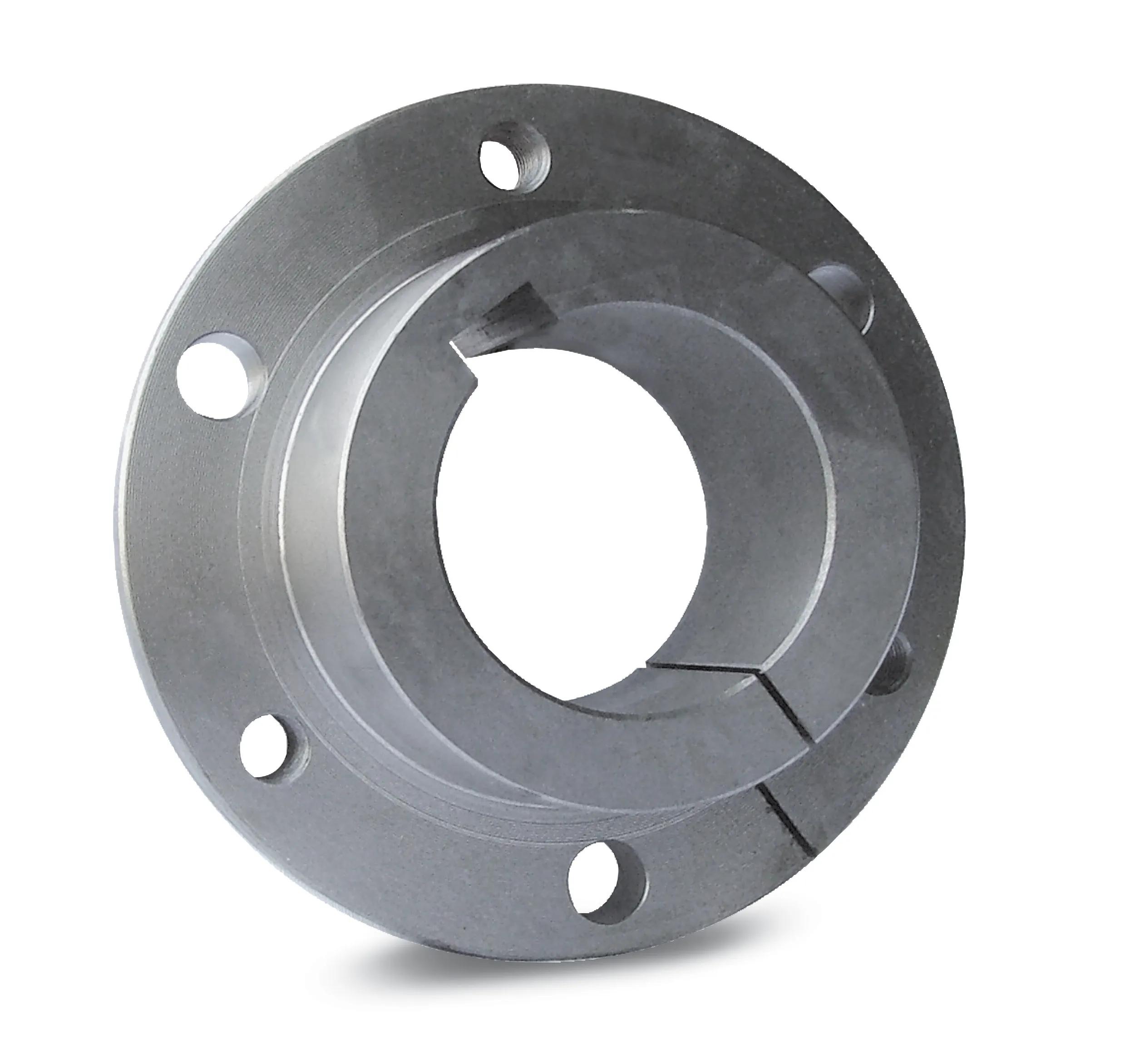

- Dodge® 120345
120345
SH X 1/2-KW BUSHING
- CP#:
- Item#: SHX1/2-KW
- Mfr#: 120345
- UPC: 78247510009
- Size SH bushing
- Flanged design
- 4 deg angled taper
- Easy On/Off operation
- Manufactured precisely to industry standards
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® QD Bushing, 1/2 in Bore Dia, 1.88 in Barrel Dia, 4-3/4 in Hub Dia, 2-1/4 in Bolt Circle, 2.63 in Flange Dia, 0.38 in Flange Thickness, 3 Bolt Holes, 1/4 x 1-3/8 in Screw, 3500 in-lb, 1-1/4 in Overall Length, 1/8 x 1/16 in Keyway, Ductile Iron
SPECIFICATIONS
| Torque Rating | : | 3500 in-lb |
| Flange Thickness | : | 0.38 in |
| Keyway Size | : | 0.125 X 0.125 |
| Bushing Size | : | SH |
| Bore Length | : | 1.25 in |
| Bore Diameter | : | 0.5 in |
| Overall Length | : | 1-1/4 in |
| Material | : | Sintered Steel |
| Shaft Attachment | : | Finished Bore |
| Installation Torque | : | 108 in-lb |
| Bolt Circle Diameter | : | 2-1/4 in |
| Hub Diameter | : | 4-3/4 in |
| Number of Bolt Holes | : | 3 |
| Screw Size | : | 1/4 x 1-3/8 in |
| Barrel Diameter | : | 1.88 in |
| Flange Diameter | : | 2.63 in |
| Integral Key | : | No |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/287f50d69716b9ca/original/Mechanical-Drive-Components.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/4885a961ce41fe89/original/MN4049-QD-Bushings.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/51f2895da5a4fdb7/original/MN4003-QD-and-Taper-Lock-bushings-Reboring.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/7e47c5b5650ec315/original/MN4042-QD-Taper-Lock-Bushings-Reboring-Guidelines-sintered-steel.pdf
