113735

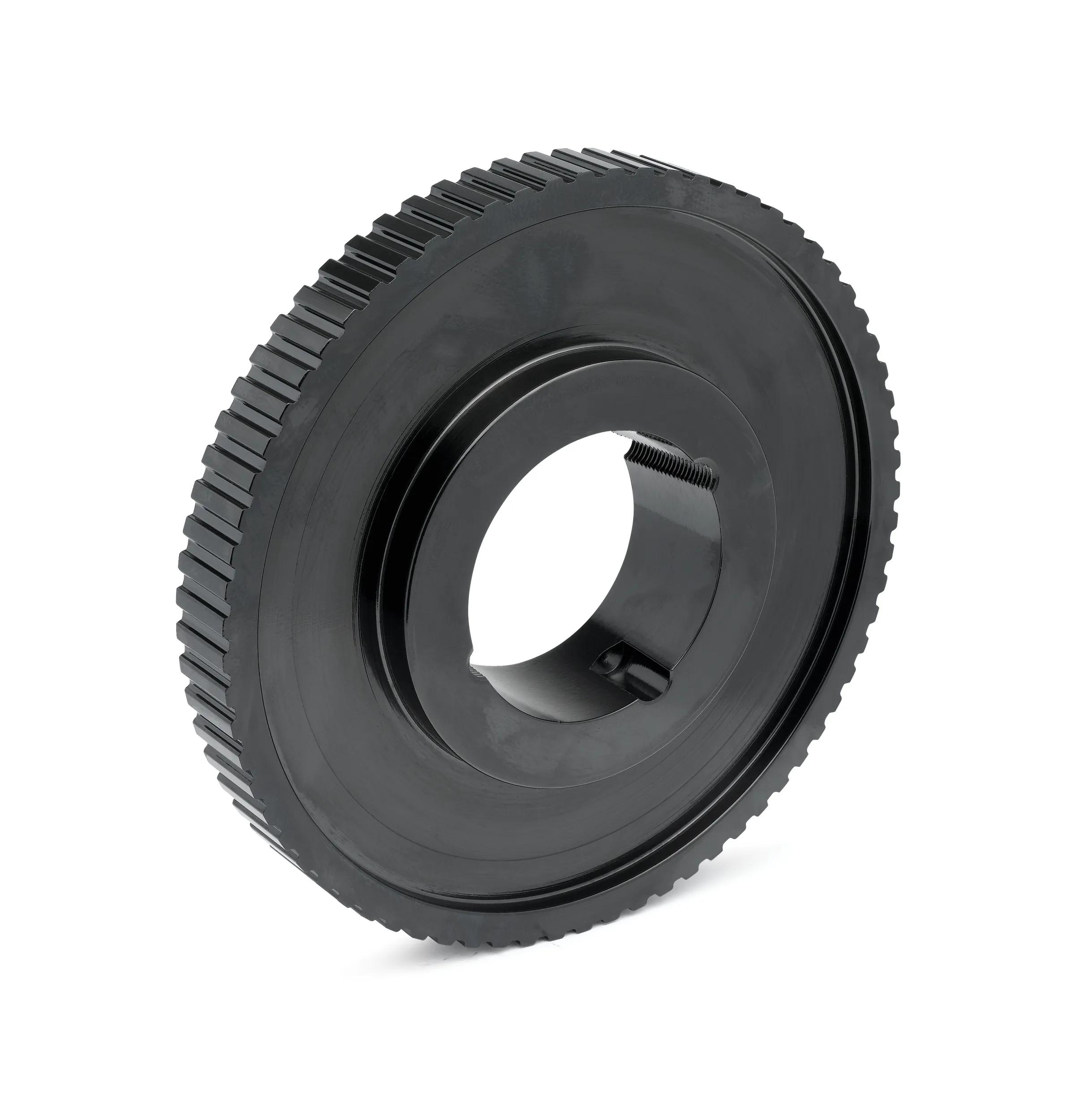

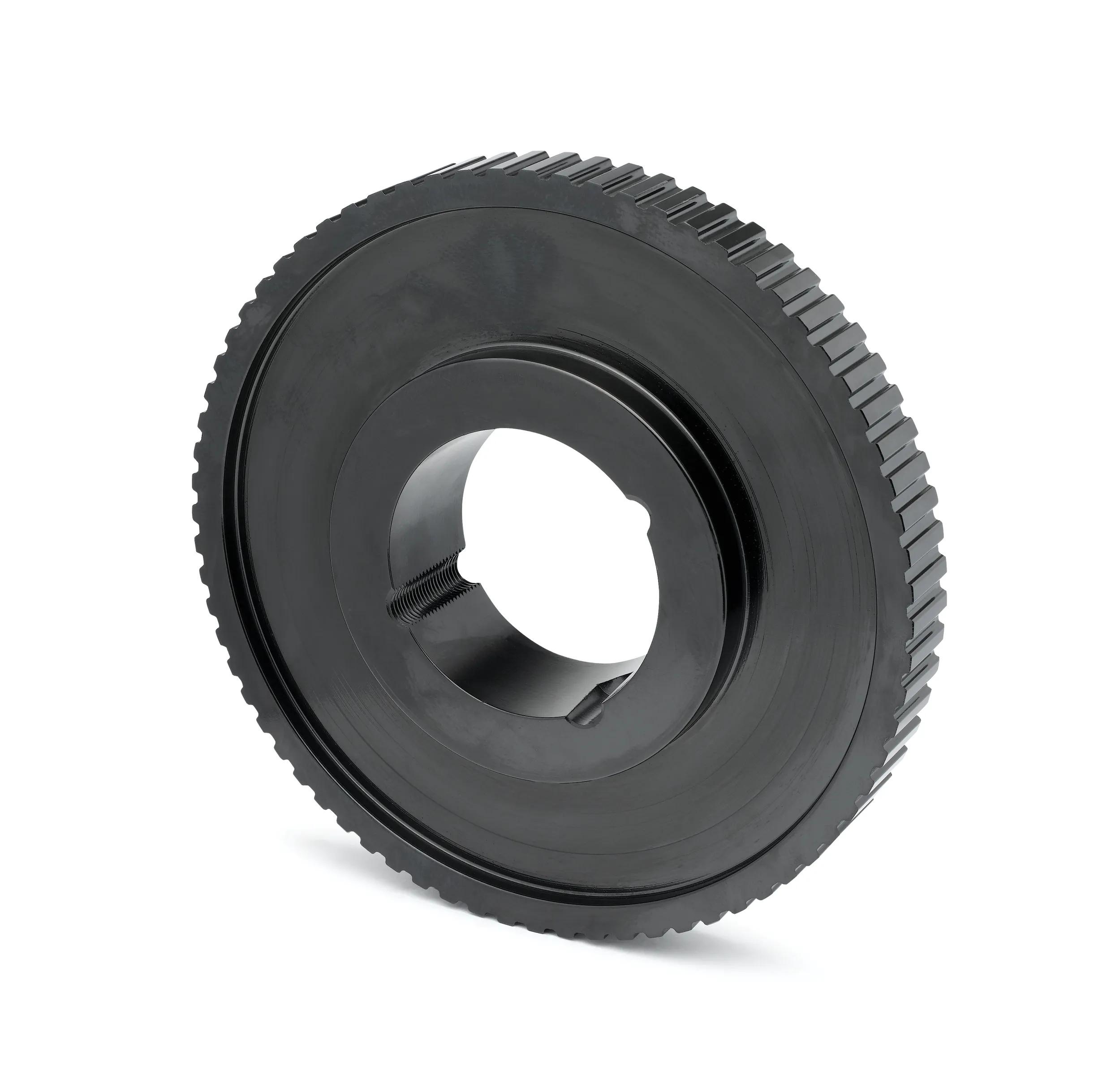

TL60H200-3020 DYNA-SYNC SPKT
- CP#:
- Item#: TL60H200-3020
- Mfr#: 113735
- UPC: 78247508870
- Synchronized and no-slip transmission
- No lubrication required
- Approximately 98% efficiency can obtained
- Low maintenance
- Virtually no backlash
- Constant linear velocity
- 8.5:1 drive ratio
- Easy On/Off operation
- Flange design standard on drive size
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® Timing Belt Pulley, Dyna-Sync Type A2, Taper-Lock® Bore, 7/8 to 3 in Bore Dia, 9.495 in Outside Dia, 9.549 in, 60 Grooves, 1/2 in Pitch, 2.34 in Face Width, 0.17 in Hub Projection, 3020 Bushing
SPECIFICATIONS
| Pitch | : | 1/2 in |
| Bushing Type | : | 3020 |
| Bore Diameter | : | 7/8 to 3 in |
| Bore Type | : | Taper-Lock |
| Outside Diameter | : | 9.495 in |
| Number of Grooves | : | 60 |
| Pitch Diameter | : | 9.549 in |
| Face Width | : | 2.34 in |
| Type | : | Dyna-Sync Type A2 |
| Hub Projection | : | 0.17 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/18ab3f16581aa9dd/original/MN4056-Synchronous-Drives.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/287f50d69716b9ca/original/Mechanical-Drive-Components.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf
