112478

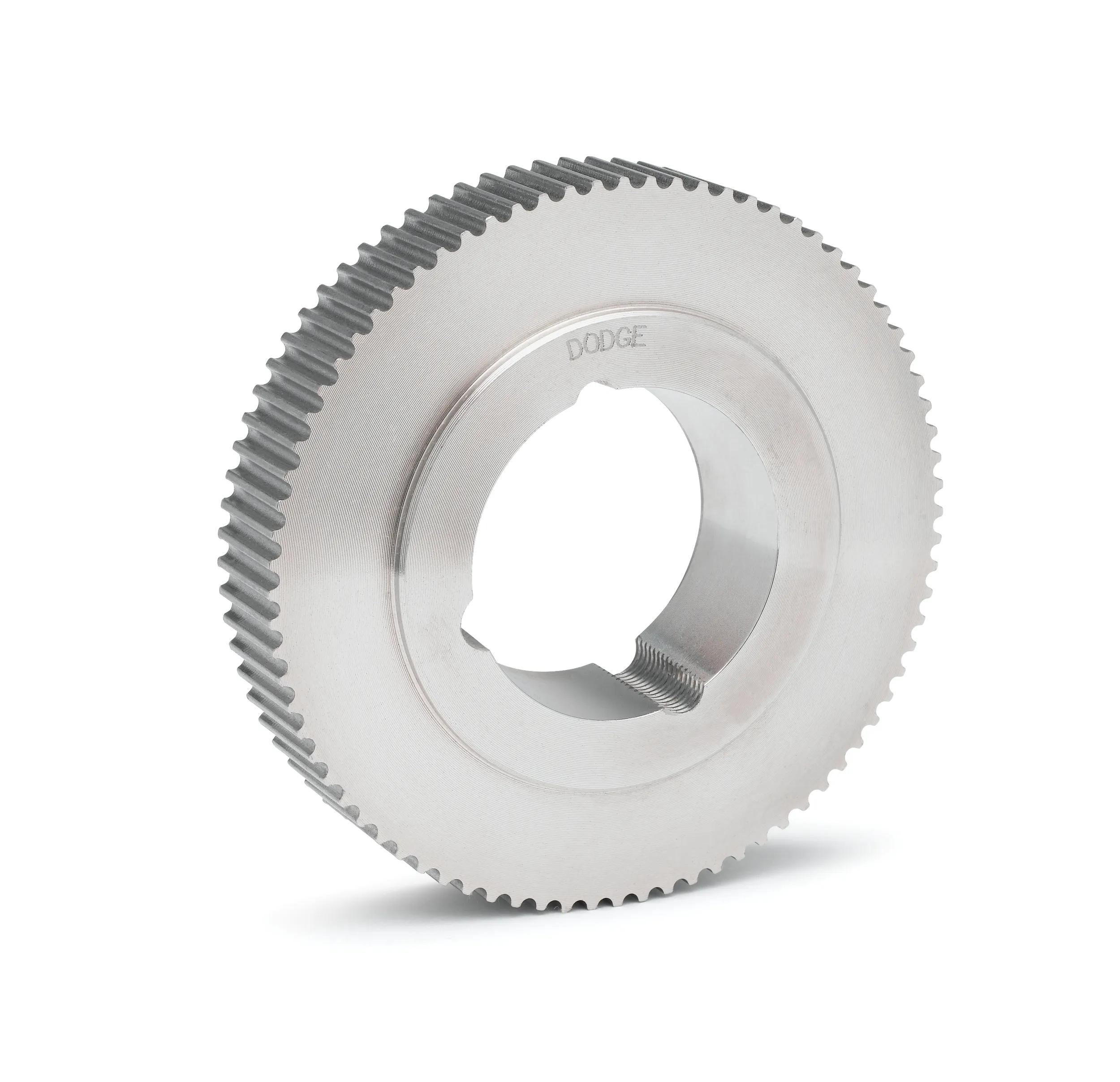

P80-5M-15-1610 HT250 SPKT
- CP#:
- Item#: P80-5M-15-1610
- Mfr#: 112478
- UPC: 78247573310
- Positive and non-slip drive
- No lubrication required
- Non-stretch
- Corrosion resistant
- Abrasion resistant
- Virtually no backlash
- Long life
- Low maintenance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® High Torque Belt Sprocket, Type B1, Series: HT250, Taper-Lock® Bore, 1/2 to 1-11/16 in Bore Dia, 4.968 in Outside Dia, 5.013 in, 80 Grooves, 5 mm Pitch, 0.89 in Face Width, 0.11 in Hub Projection, 1610 Bushing
SPECIFICATIONS
| Bushing Type | : | 1610 |
| Series | : | HT250 |
| Pitch | : | 5 mm |
| Bore Diameter | : | 1/2 to 1-11/16 in |
| Bore Type | : | Taper-Lock |
| Outside Diameter | : | 4.968 in |
| Number of Grooves | : | 80 |
| Pitch Diameter | : | 5.013 in |
| Face Width | : | 0.89 in |
| Type | : | Type B1 |
| Hub Projection | : | 0.11 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/18ab3f16581aa9dd/original/MN4056-Synchronous-Drives.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/287f50d69716b9ca/original/Mechanical-Drive-Components.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf
