111231
4-5V23.6-3535 SHEAVE
- CP#:
- Item#: 4/5V23.6-3535
- Mfr#: 111231
- UPC: 78247552856
- Isolates shock loads and vibration
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- Low maintenance
- No lubrication required
- Typically 95% efficiency can be obtained
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

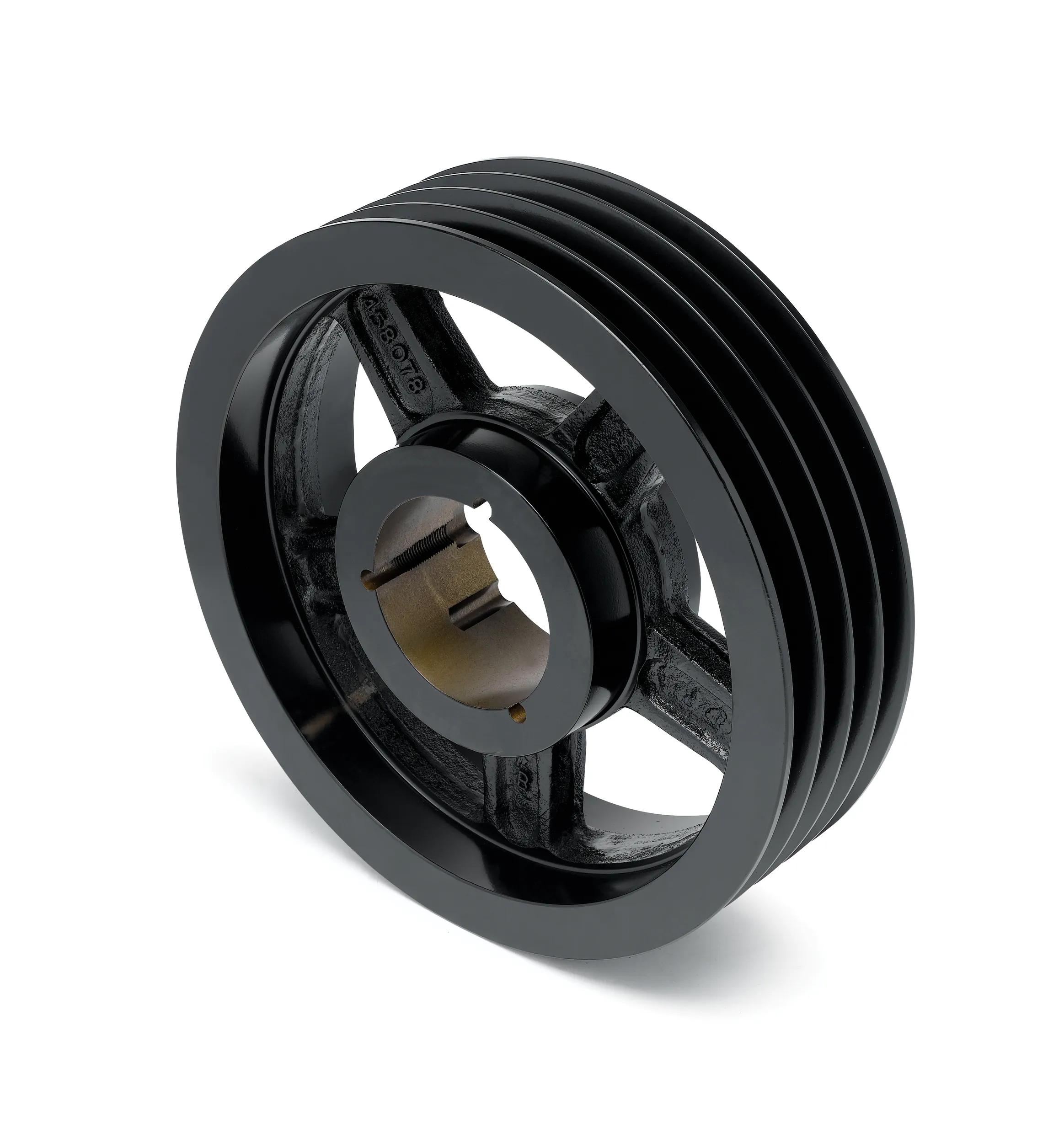

Dodge® Sheave, Type C3, Taper-Lock® Bore, 23.6 in OD, 23-1/2 in Pitch Diameter, 4 Grooves, 3.06 in Face Width, 3535 Bushing, For Use With: 5V-Cross Section V-Belts, Cast Iron, Gray
SPECIFICATIONS
| Material | : | Cast Iron |
| Bushing Type | : | 3535 |
| Bore Type | : | Taper-Lock |
| Outside Diameter | : | 23.6000 in |
| Number of Grooves | : | 4.0000 |
| Pitch Diameter | : | 23-1/2 in |
| Face Width | : | 3.06 in |
| Suitable For Use With | : | 5V-Cross Section V-Belts |
| Type | : | Arm (Construction) |
| Finish | : | Gray |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/287f50d69716b9ca/original/Mechanical-Drive-Components.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/75e94c01256dca5a/original/MN4002-V-belt-Drive.pdf
