Dodge®
079848
F4B-GTEZ-55M-SHCR MOD
- Item#: F4B-GTEZ-55M-SHCR MOD
- Mfr#: 079848
- UPC: 782476947538
- Housings feature a solid base, with no cavities or fillings to trap contaminants
- An active antimicrobial agent in the polymer housing prevents fungal and bacterial growth
- Mechanically retained QuadGuard™ sealing system with triple lip seal and rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element
- H1 registered food grade lubricant
- Wide inner ring design
- Thin wall adapter locking
- Stainless steel housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

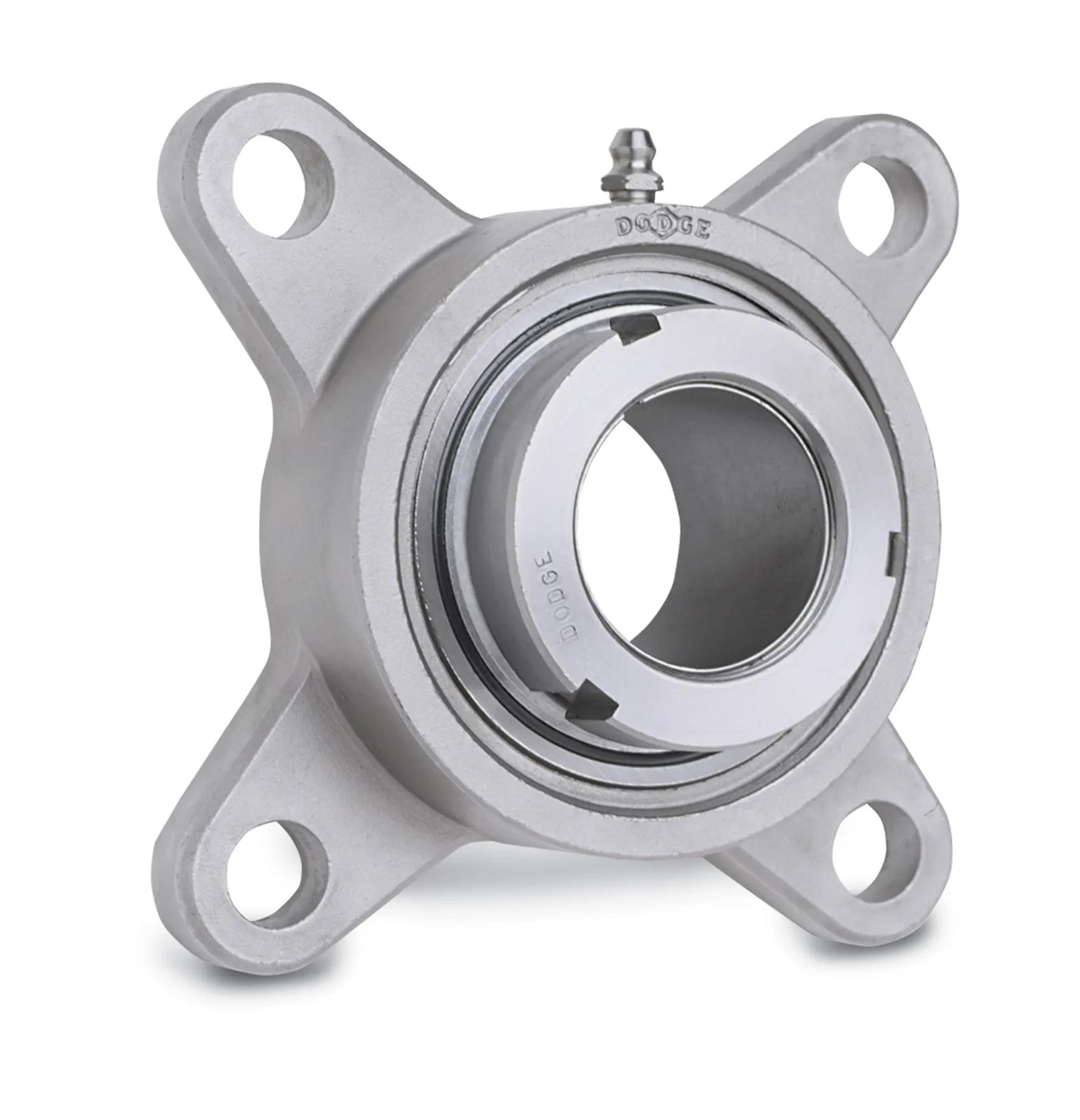

Dodge® E-Z-Kleen® mounted ball bearings are ideal for wash-down applications. The corrosion resistant nickel composite plated insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant. Shaft attachment methods include SC setscrew, D-LOK® concentric and Grip-Tight® adapter.
Dodge® E-Z-Kleen® Flange Mount Ball Bearing Unit, Normal Duty Expansion, Series: 211, 55 mm Bore, 4-Bolt Flange Mounting, Grip-Tight® Adapter Mounted Locking Device, Steel Bearing, -20 to 225 deg F, Uncoated
SPECIFICATIONS
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Locking Device | : | Grip-Tight® Adapter Mounted |
| Series | : | 211 |
| Temperature Rating | : | -20 to 225 deg F |
| Type | : | Normal Duty Expansion |
| Bore Diameter | : | 55 mm |
| Flange Mounting Type | : | 4-Bolt |
