- Dodge® 022195
022195

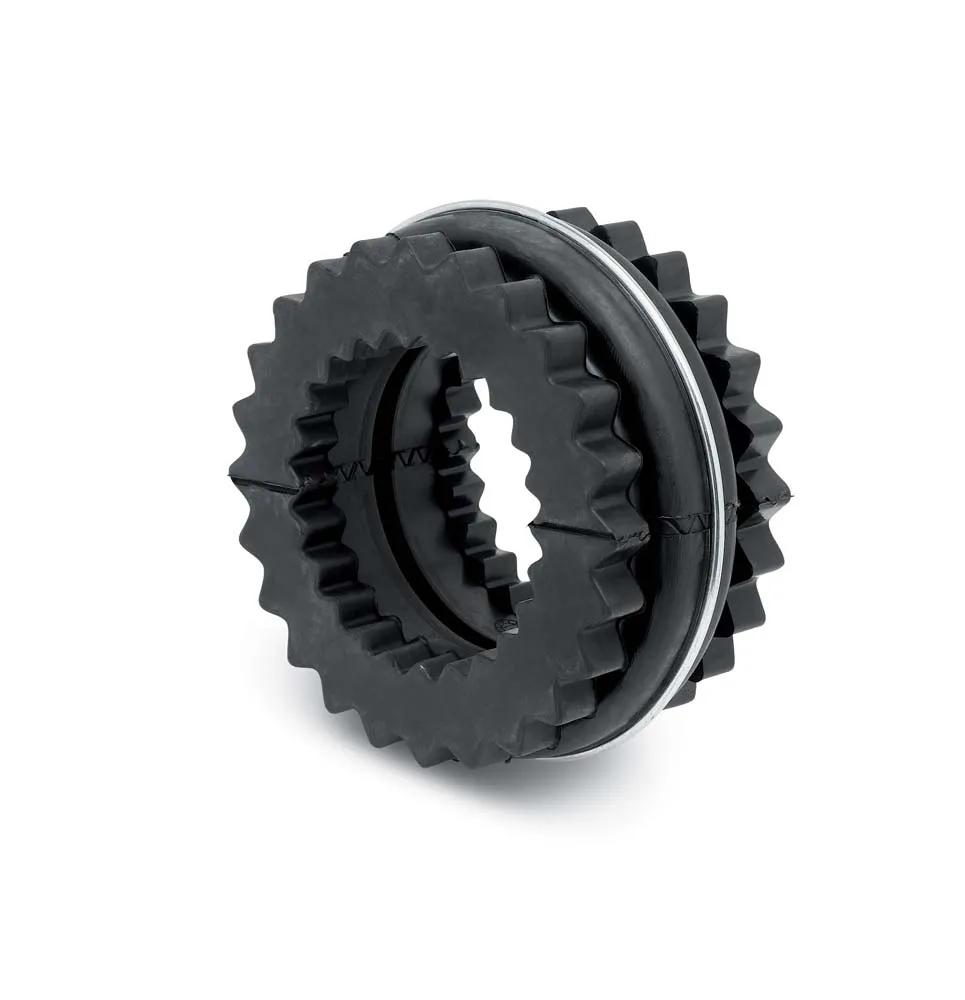

D-FLEX 9E SLEEVE
- CP#:
- Item#: 9E SLEEVE
- Mfr#: 022195
- UPC: 78247587449
- Rounded EPDM and neoprene element edges for full tooth engagement, even load distribution, reduced stress build up, and longer life
- Outside diameter concentric to bore for ease in alignment
- Interchangeable components makes installation quick and easy
- No lubrication assures trouble-free operation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® Coupling Sleeve, Type E, Series: D-Flex, 09 Coupling, 3 in Length, 6 in OD, 1800 in-lb Torque, 3750 rpm Maximum, For Use With: D-Flex Coupling, -30 to 275 deg F, EPDM Rubber
SPECIFICATIONS
| Series | : | D-Flex |
| Type | : | Elastomeric (Coupling) |
| Outside Diameter | : | 6.35 inch |
| Material | : | EPDM Rubber |
| Coupling Component | : | Element |
| Temperature Rating | : | -30.0000 to 275.0000 deg F |
| Torque Rating | : | 1800 in-lb |
| Suitable For Use With | : | D-Flex Coupling |
| Coupling Size | : | 9 |
| Length | : | 3 in |
| Maximum Speed | : | 3750 rpm |
| Lubrication | : | None |
| Parallel Misalignment | : | 0.0250 in |
| Product Net Width | : | 18.41 centimetre |
| Element Material | : | EPDM |
| Rated Torque | : | 1800.0000 in-lb |
| Angular Misalignment | : | 1.0000 deg |
| Axial Misalignment | : | 0.1920 in |
| Bore Tolerance Standard | : | 0 |
DOCUMENTS
-
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/392a3753f19a5ca8/original/D-Flex-Coupling.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/3f0aaa98870107b5/original/Couplings-Mechanical-Soft-Starts.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/58ad0ee4cc9e1c9/original/Metric-D-Flex.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/7c316f4a750245fb/original/MN4023-D-Flex-Couplings.pdf -
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/8cc69fa4335b537/original/Dodge-Quick-Coupling-Selection-Guide.pdf
