- Dodge® 022183

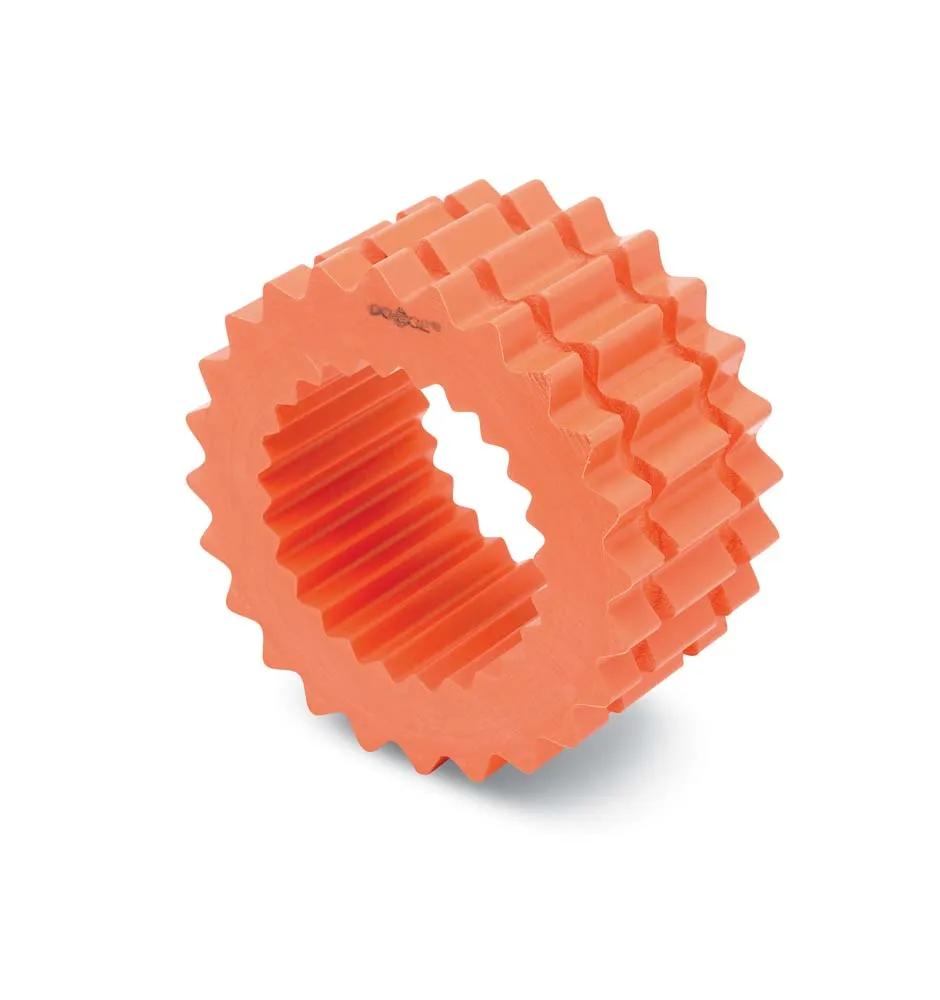

022183
6H SLEEVE
- CP#:
- Item#: 6H SLEEVE
- Mfr#: 022183
- UPC: 78247587268
- Rounded EPDM and neoprene element edges for full tooth engagement, even load distribution, reduced stress build up, and longer life
- Outside diameter concentric to bore for ease in alignment
- Interchangeable components makes installation quick and easy
- No lubrication assures trouble-free operation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® Coupling Sleeve, Type H, Series: D-Flex, 06 Coupling, 1-7/8 in Length, 3-3/4 in OD, 1800 in-lb Torque, 6000 rpm Maximum, For Use With: D-Flex Coupling, -30 to 275 deg F, Hytrel®
SPECIFICATIONS
| Series | : | D-Flex |
| Type | : | Elastomeric (Coupling) |
| Outside Diameter | : | 3-3/4 in |
| Material | : | Hytrel® |
| Coupling Component | : | Element |
| Temperature Rating | : | -65.0000 to 250.0000 deg F |
| Torque Rating | : | 1800 in-lb |
| Suitable For Use With | : | D-Flex Coupling |
| Coupling Size | : | 6 |
| Length | : | 1.875 in |
| Maximum Speed | : | 6000 rpm |
| Lubrication | : | None |
| Parallel Misalignment | : | 0.0100 in |
| Element Material | : | Hytrel |
| Rated Torque | : | 1800.0000 in-lb |
| Angular Misalignment | : | 0.2500 deg |
| Axial Misalignment | : | 0.1200 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/303121b1536728c/original/MN4018-ATEX-Certified-Para-Flex-and-D-Flex-Couplings.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/3f0aaa98870107b5/original/Couplings-mechanical-soft-starts-catalog.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/58ad0ee4cc9e1c9/original/Metric-D-Flex.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/7c316f4a750245fb/original/MN4023-D-Flex-Couplings.pdf
