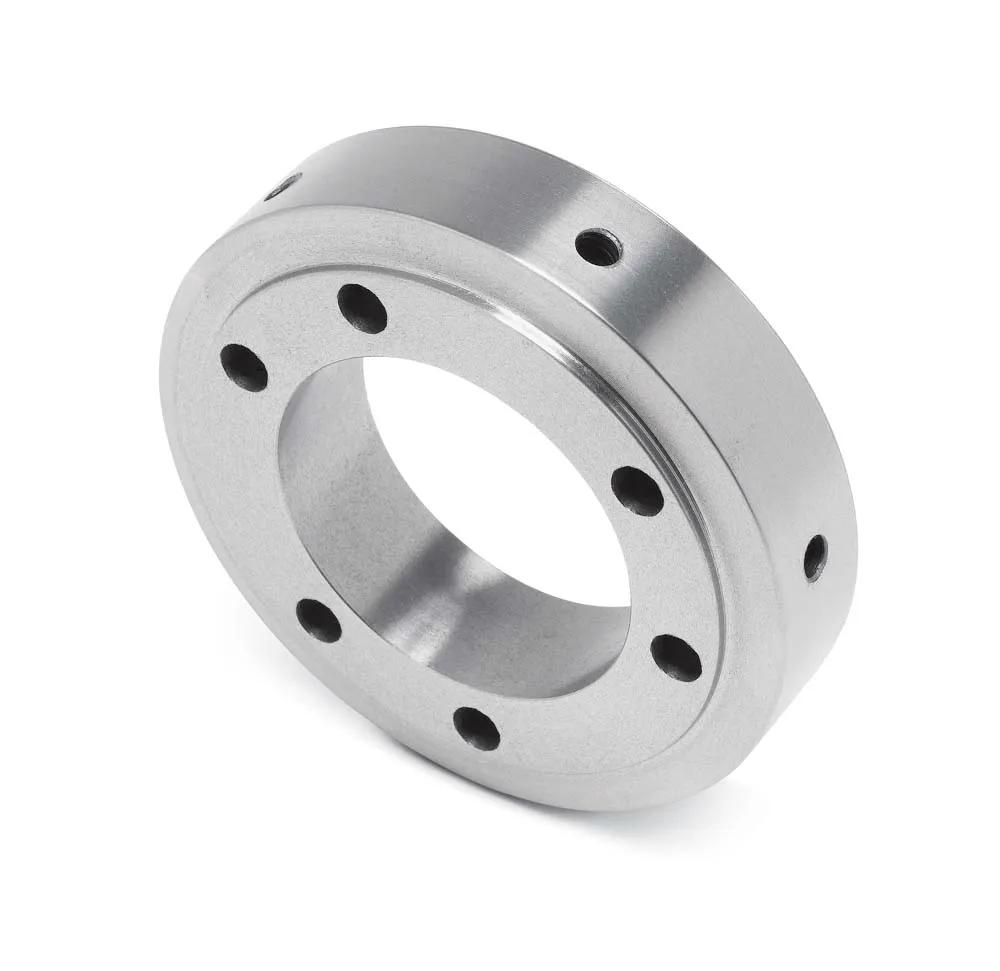

- Dodge® 015812
015812
RAPTOR 5HQD-SH
- CP#:
- Item#: RAPTOR 5HQD-SH HUB
- Mfr#: 015812
- UPC: 78247727794
- Suited for any application, hubs are reversible to accommodate a wide range of shaft gaps
- Interchangeable hubs are used for both close-coupled and spacer designs for reduced inventory
- Quick detachable QD bushings for easy installation and removal
- Reduced maintenance time and costs
- Minimal shaft damage
- Increased bore capacities
- Robust flanged design featuring cap screw hardware
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® Raptor Coupling Hub, Tire QD Bushed, E5 Coupling, 1.63 in Bore Dia, 2.8 in Hub Dia, 7500 rpm Maximum, 1-3/4 in Length Through Bore, Steel
SPECIFICATIONS
| Type | : | Tire QD Bushed, Elastomeric |
| Inside Diameter | : | 1.63 in |
| Material | : | Steel |
| Temperature Rating | : | -45.0000 to 220.0000 deg F |
| Axial Misalignment | : | 0.3125 in |
| Bore Fit | : | 0 |
| Bore Tolerance Standard | : | 0 |
| Coupling Type | : | Elastomeric |
| Angular Misalignment | : | 4.0000 deg |
| Maximum Speed | : | 7500 rpm |
| Coupling Size | : | 5 |
| Length Through Bore | : | 1-3/4 in |
| Hub Diameter | : | 2.8 in |
| Shaft Spacing | : | Close Coupled|Spacer |
| Shaft Attachment | : | Bushed |
| Rated Torque | : | 926.0000 in-lb |
| Lubrication | : | None |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/1bd1c1677e8e8c99/original/MN4068-Raptor-Spacer-Extension-Kit-Couplings.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/3f0aaa98870107b5/original/Couplings-Mechanical-Soft-Starts.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/412ed380cd0b2566/original/Metric-Raptor.pdf -
Flyer https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/532e137ded719cb3/original/Raptor.pdf
