- Dodge® 009015
009015

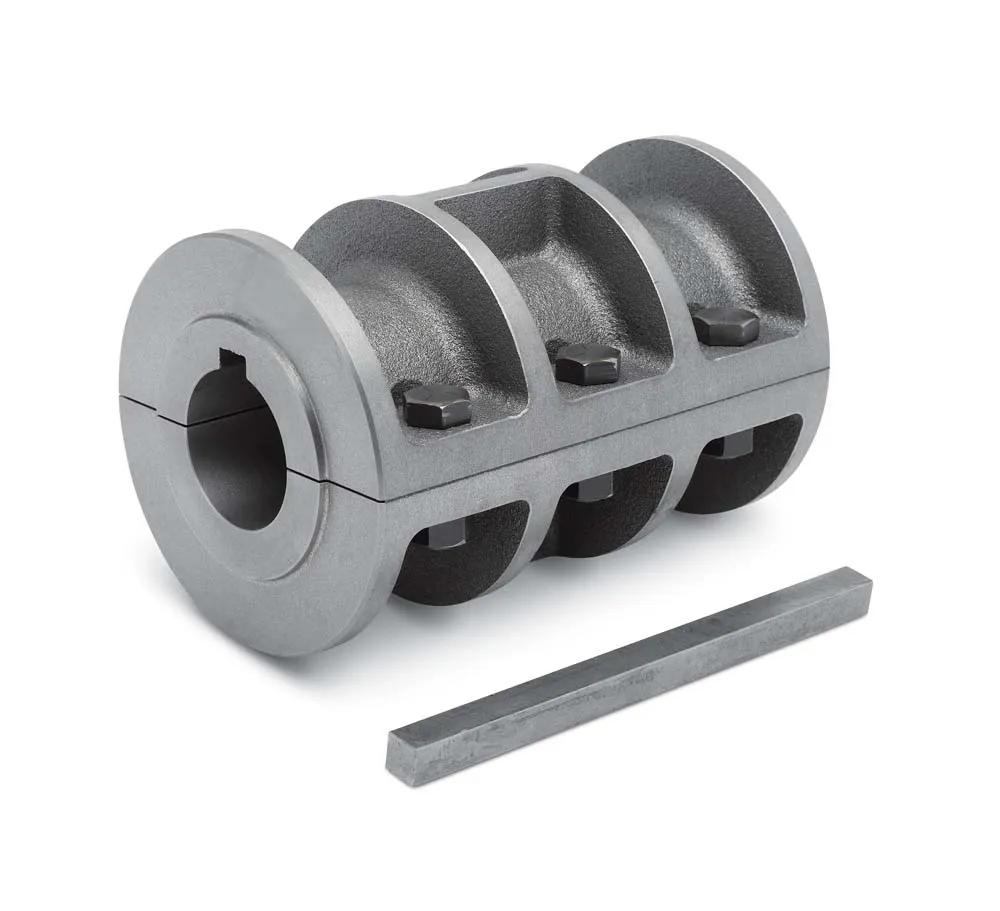

2 7/16 RIBBED COUPLING ASSEMBLY
- CP#:
- Item#: 2 7/16 RIBBED CPLG ASY
- Mfr#: 009015
- UPC: 78247500708
- Simple, easy installation
- No lubrication or maintenance required
- Zero backlash for timing or positioning applications
- Rated load capacities of 1018 shafting
- Connects same diameter shafts via compression fit clamping
- Metallic coupling
- Clearance fit with full length key
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Originally known as the "Grim Death" compression coupling, the Dodge® ribbed rigid coupling is proudly made utilizing over 110 years of Dodge® coupling knowledge. With rated load capacities of ANSI 1018 steel, the Dodge® ribbed rigid coupling can be clamp fit onto shafts of equal diameter with a full length key.
Dodge® Ribbed Rigid Coupling, Finished Bore, 2-7/16 in Bore, 6-7/16 in OD, 9-11/16 in Overall Length, 17100 in-lb Torque, 2965 rpm Maximum
SPECIFICATIONS
| Type | : | Finished Bore |
| Inside Diameter | : | 2.4375 in |
| Outside Diameter | : | 6-7/16 in |
| Overall Length | : | 9-11/16 in |
| Temperature Rating | : | -100.0000 to 285.0000 deg F |
| Torque Rating | : | 17100.0000 in-lb |
| Maximum Speed | : | 2965 rpm |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/3f0aaa98870107b5/original/Couplings-mechanical-soft-starts-catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/45a825cd9d062cfe/original/MN4021-Ribbed-Rigid-Couplings.pdf -
Document 4 https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/8cc69fa4335b537/original/Dodge-Quick-Coupling-Selection-Guide.pdf
