Dodge®
005070
P2B-BZSP-115
- Item#: P2B-BZSP-115
- Mfr#: 005070
- UPC: 78247500602
- Fully split housing for trouble-free assembly and disassembly
- Replaceable split bronze bushings
- Brass locking spool for easy bushing replacement
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

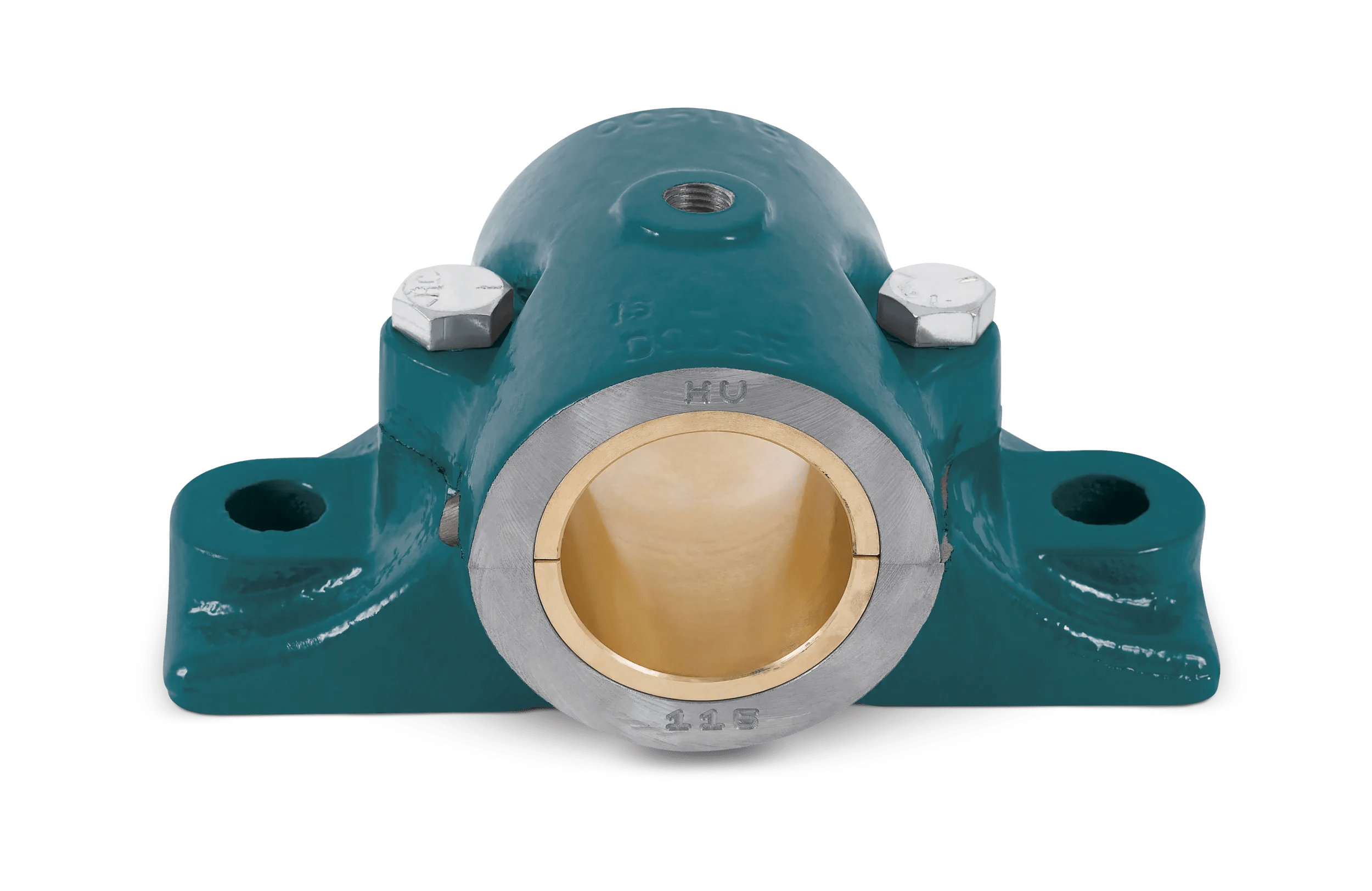

Dodge® Pillow Block Plain Sleeve Bearing, Bronze Bushed Split, 1-15/16 in Bore, 5-15/16 to 6-1/16 in Bolt Center-to-Center Length, 1-3/4 in Base to Bore Centerline, 7-1/2 in Overall Length, 3-7/8 in Overall Width, 3-1/2 in Overall Height, Two-Bolt Base Mounting, 2-1/2 in Base Width, Unsealed Seal, Expansion, 715 lb Load, 300 deg F, 500 rpm Maximum, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 2-1/2 in |
| Type | : | Journal |
| Base to Bore Centerline | : | 1-3/4 in |
| Bolt Center-to-Center Length | : | 5-15/16 to 6-1/16 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Expansion |
| Finish | : | Uncoated |
| Overall Length | : | 7-1/2 in |
| Load Capacity | : | 715 lb |
| Material | : | Cast Iron |
| Maximum Speed | : | 500 rpm |
| Overall Width | : | 3-7/8 in |
| Inside Diameter | : | 1-15/16 in |
| Mounted | : | Yes |
| Overall Height | : | 3-1/2 in |
| Seal Type | : | Unsealed |
| Temperature Rating | : | 300 deg F |
