- Dodge® 003013
003013

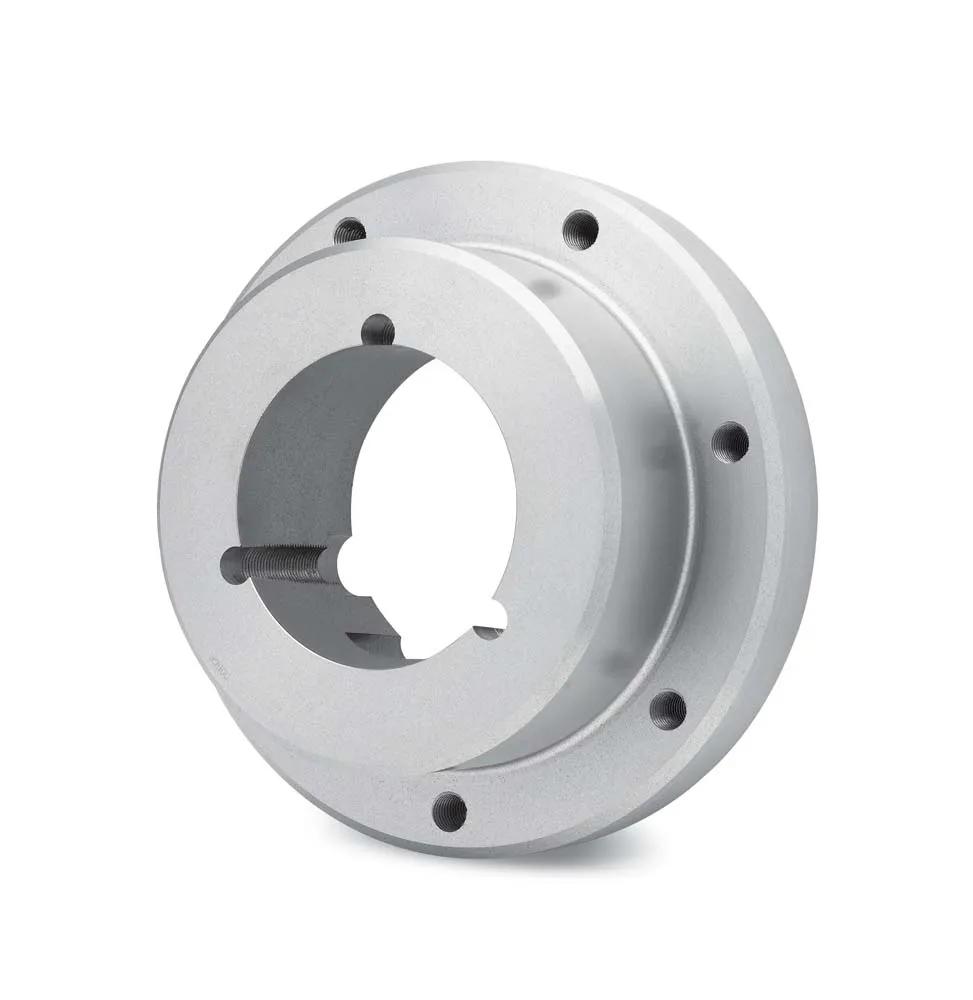

R50TL RIGID MALE FLANGE ASSY
- CP#:
- Item#: R50TL RIGID MALE FLG ASY
- Mfr#: 003013
- UPC: 78247500578
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dodge® Male Flange Assembly, 2-7/16 to 5-5/16 in Bore, 14-1/4 in OD, 10-1/4 in Overall Length, 5 in Length Through Bore, 147000 in-lb Torque, 1740 rpm Maximum, Cast Iron
SPECIFICATIONS
| Type | : | Taper-Lock (Bushing) |
| Material | : | Cast Iron |
| Inside Diameter | : | 2-7/16 to 5-5/16 in |
| Outside Diameter | : | 14.25 inch |
| Overall Length | : | 10-1/4 in |
| Temperature Rating | : | -100.0000 to 285.0000 deg F |
| Length Through Bore | : | 5 in |
| Torque Rating | : | 147000.0000 in-lb |
| Maximum Speed | : | 1740 rpm |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/27f44b7ba044d40b/original/MN4020-Taper-Lock-Rigid-Couplings.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/353548f1d440f121/original/Mechanical-Power-Transmission-Solutions.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/3f0aaa98870107b5/original/Couplings-mechanical-soft-starts-catalog.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/40f7e8b42367fd9f/original/PT-components-engineering-catalog-Taper-Lock-rigid-couplings.pdf -
Document 5 https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.dodgeindustrial.com/m/8cc69fa4335b537/original/Dodge-Quick-Coupling-Selection-Guide.pdf
