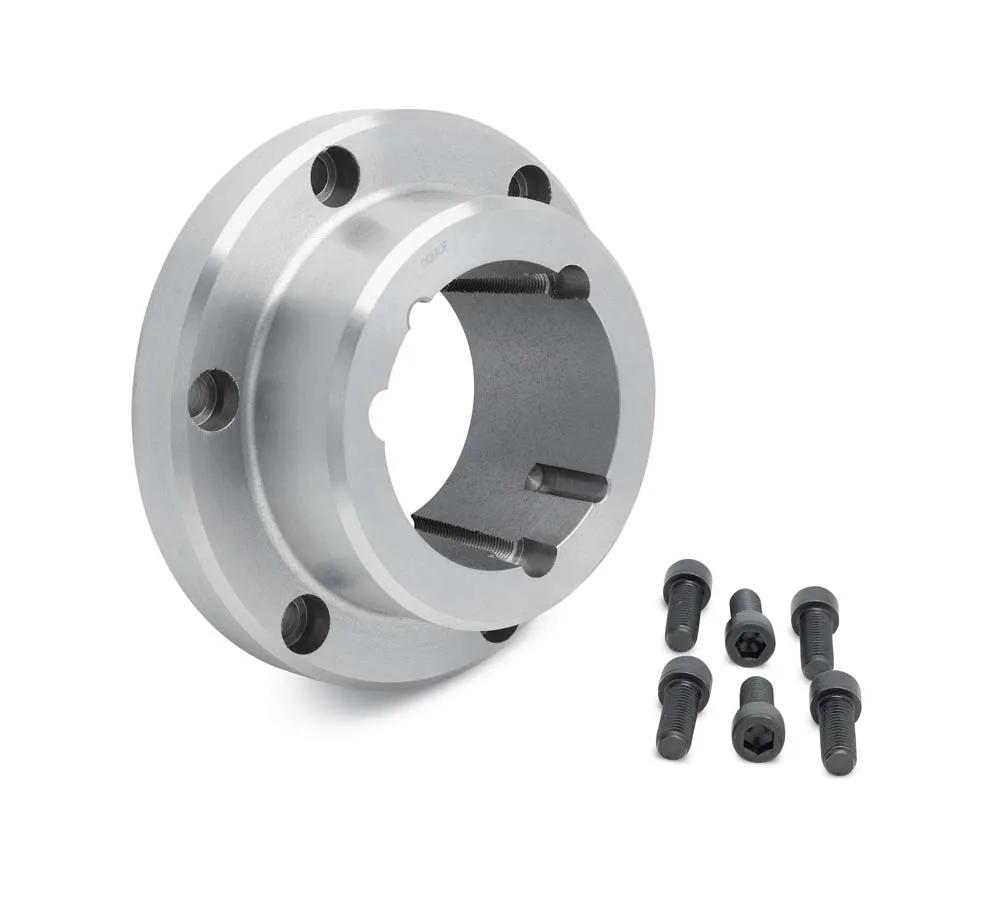

R35TL RIGID MALE FLANGE ASSY
Dodge® Male Flange Assembly, 1-3/16 to 3-15/16 in Bore, 9-3/4 in OD, 7-1/4 in Overall Length, 3-1/2 in Length Through Bore, 50500 in-lb Torque, 2545 rpm Maximum, Cast Iron
Length Through Bore | : | 3-1/2 in |
Material | : | Cast Iron |
Temperature Rating | : | -100.0000 to 285.0000 deg F |
Type | : | Taper-Lock (Bushing) |
Bore Diameter | : | 1-3/16 to 3-15/16 in |
Outside Diameter | : | 9.75 inch |
Overall Length | : | 7-1/4 in |
Torque Rating | : | 50500.0000 in-lb |
Maximum Speed | : | 2545 rpm |
