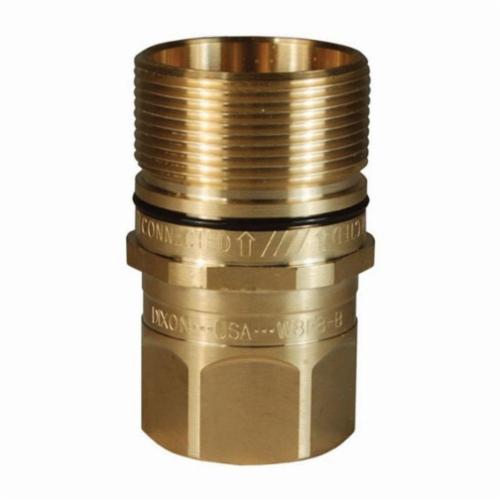

Dixon® W12F12-B Wing Style Interchange Plug, 1-1/2-11.5 Nominal, FNPTF End Style, Brass, Domestic

  • Item#: W12F12-B
  • Mfr#: W12F12-B
    • Full hex - ease of installation
    • Compatible with Aeroquip 5100 series, Parker 6100 series and Snap-Tite 78 series, Faster series FB and safeway S51 series couplings
    • Vane valve guide - improved flow performance
    • Compact body profile - reduction of side-load stress
    • O-ring 'full-connection' indicator - improved connection efficiency
    • Swaged valve seal - resistance to flow damage
    • Machined components are manufactured using solid steel and brass bar stock
    • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
    • Steel componentry is plated using ROHS compliant trivalent chrome
    • For steel models, coupler valve sleeve and nipple valve are constructed of brass
    • Nitrile (Buna-N) seals are standard, providing a temperature range of -40degF to 250degF (-40degC to 121degC)
    • Couplings have a TPC-ET back-up ring on the valve sleeve to extend service life
    • Nipple valve seal is crimped to improve seal integrity and prolong service life
    • External o-ring on plug indicates full connection and acts as a contamination shield in connected mode
    • Redundant o-ring on the coupler body will engage nipple for secondary sealing support
    • 2.73 in OD max
    • 1-1/2 in body
    • 10000 psi burst
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Interchange Plug, Wing Style, Series: W Series, Fitting/Connector Type: Plug, 1-1/2-11.5 Nominal, FNPTF, 2-1/4 in Hex, 3.74 in Length, 2500 psi, Brass, -40 to 250 deg F, Domestic

SPECIFICATIONS

Hex Size      :      2-1/4 in
Length      :      3.74 in
Pressure Rating      :      2500 psi
Series      :      W Series
Temperature Rating      :      -40 to 250 deg F
Type      :      Wing Style
Fitting/Connector Type      :      Plug
Nominal Size      :      1-1/2-11.5
End Style      :      FNPTF
Material      :      Brass
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_V2F2_B_Catalog.pdf
