Dixon® SWMF125
Dixon®

Dixon® SWMF125

loading

SWMF125

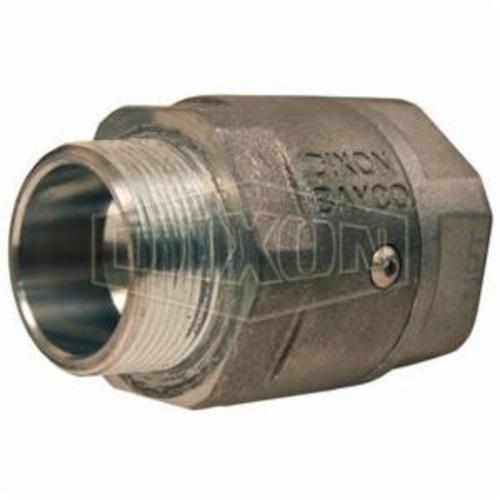

Dixon® SWMF125 Heavy Duty Hose Swivel, 1-1/4 in Nominal, MNPT x FNPT, Bayloy, Domestic

  • Item#: SWMF125
  • Mfr#: SWMF125
  • UPC: 089109723911
    • Heavy duty internal thrust bearings and anti-friction seal design ensures swiveling at -40 deg F
    • Can be lubricated without disassembly by using the optional grease fitting kit
    • Manufactured to connect to NPT threaded hose and nozzle connections
    • Hardened carbon steel swivel ball race
    • Through hardened chrome steel ball bearings
    • Buna and PTFE seals
    • All fuel contains additives, which can vary by fuel brands and season
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Hose Swivel, Heavy Duty, Swivel Fitting/Connector, 1-1/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Bayloy, Domestic

SPECIFICATIONS

Pressure Rating      :      150 psi
Fitting/Connector Type      :      Swivel
Type      :      Heavy Duty
Nominal Size      :      1-1/4 in
End Style      :      MNPT x FNPT
Material      :      Bayloy
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HS075AL_Catalog.pdf
