SFC400

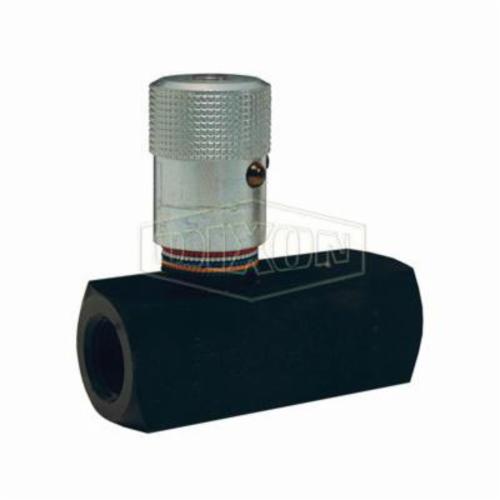

Dixon® SFC400 F Series Flow Control Valve, 1/4 in FNPT Nominal, 5000 psi Pressure, Steel Body
- CP#:
- Item#: SFC400
- Mfr#: SFC400
- UPC: 089109828401
- Two-step needle provides fine adjustments at low flow with the first three turns of the adjusting knob
- The next three turns give full open needle position and conventional throttling control
- When flow is reversed, the heavy duty poppet/retainer permits full-flow return capacity
- Exclusive color-coded reference scale on the adjusting knob greatly simplifies flow setting resetting, adjusting and return to an original flow
- A simple set screw locks the valve on any desired setting
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Flow Control Valve, Series: F Series, 1/4 in FNPT Nominal, 5000 psi, 70 deg F, Adjustable Knob Actuation, Steel Body, Black Oxide
SPECIFICATIONS
| Series | : | F |
| Body Material | : | Steel |
| Temperature Rating | : | 70 deg F |
| Finish | : | Black Oxide |
| Actuation Type | : | Adjustable Knob |
| Nominal Size | : | 1/4 in FNPT |
| Pressure Rating | : | 5000 psi |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SCV200_Catalog.pdf
