RD200EZ

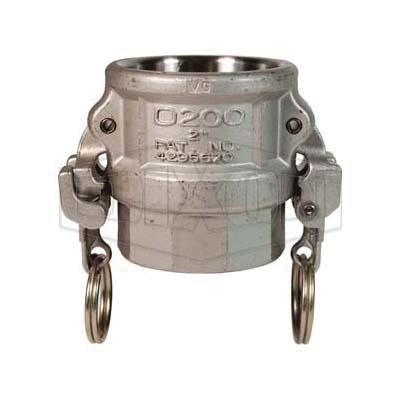

Dixon® RD200EZ EZ Boss-Lock™ Type D Cam and Groove Coupler, 2 in Nominal, Female Coupler x FNPT End Style, 316 Stainless Steel, Domestic
- CP#:
- Item#: RD200EZ
- Mfr#: RD200EZ
- 8-5/32 in open cam arm
- Resistant to accidental disconnection when dragged
- The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm
- Rotating action helps keep the locking device free of debris
- If the rotating lever is not flush with the handle, it is not properly engaged
- Under no circumstances should cam and groove couplings be used for compressed air or steam service
- Under no circumstances should the EZ boss-lock cam arms be used on any fitting not specifically designed for their use
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Cam and Groove Coupler, Type D, Series: EZ Boss-Lock™, Coupling Fitting/Connector, 2 in Nominal, Female Coupler x FNPT End Style, 250 psi Pressure, 316 Stainless Steel, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Pressure Rating | : | 250 psi |
| Series | : | EZ Boss-Lock™ |
| Fitting/Connector Type | : | Coupling |
| Type | : | Type D |
| Nominal Size | : | 2 in |
| End Style | : | Female Coupler x FNPT |
| Material | : | 316 Stainless Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_RD200EZ_Catalog.pdf -
VIDEO LINK
http://youtu.be/Vgth_9M5IRM?list=PL10BD55ADAF82DEDA
