R74BU

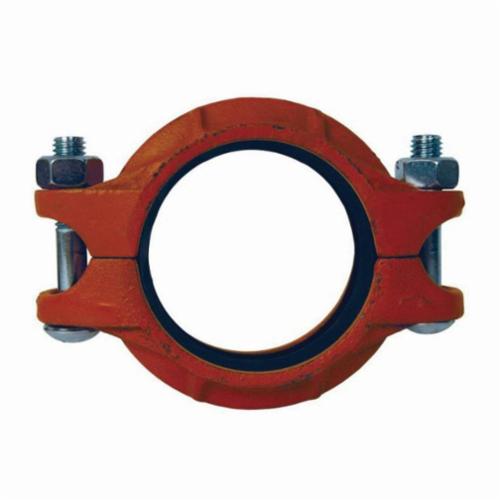

Dixon® R74BU R Series 5-Style Lightweight Rigid Coupling With Buna-N Seal Gasket, 4 in Nominal, Grooved End Style, Ductile Iron
- CP#:
- Item#: R74BU
- Mfr#: R74BU
- UPC: 697464381945
- Ductile iron body with rust inhibiting paint
- Light weight and low pressure, small gripping teeth hold the housing into the groove allowing a straight run of pipe and preventing any flex at the joint
- 4-1/2 in OD pipe
- 12720 lbs maximum end load
- 1/2 in bolt size
- 2 bolts
- 2-3/4 in L bolt
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Rigid Coupling, 5-Style Lightweight, Series: R Series, Coupling, 4 in Nominal, Grooved, 2 in Thickness, 7-45/64 in Length, 175 psi, Ductile Iron, 70 deg F
SPECIFICATIONS
| Length | : | 7-45/64 in |
| Pressure Rating | : | 175 psi |
| Series | : | R Series |
| Temperature Rating | : | 70 deg F |
| Thickness | : | 2 in |
| Type | : | 5-Style Lightweight |
| Fitting/Connector Type | : | Coupling |
| Nominal Size | : | 4 in |
| End Style | : | Grooved |
| Material | : | Ductile Iron |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H315_Catalog.pdf
