PPA300

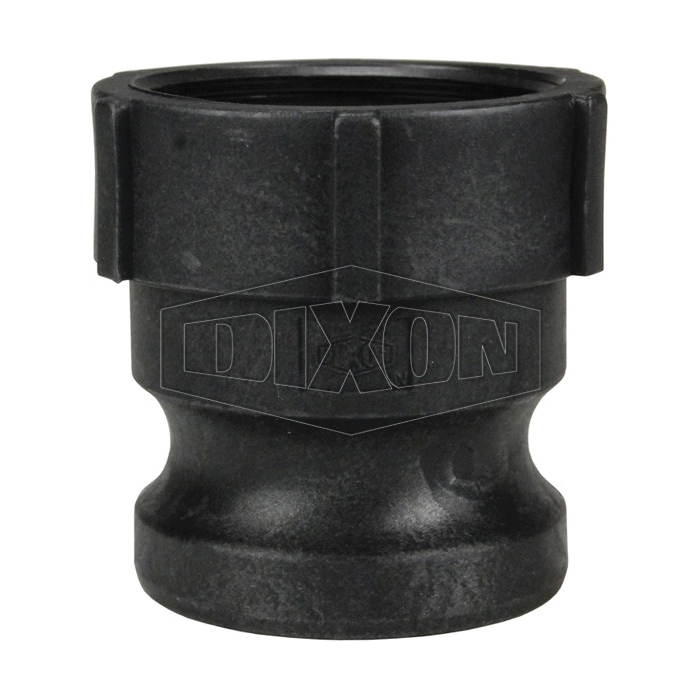

Dixon® PPA300 Type A Cam and Groove Adapter, 3 in, Male Adapter x FNPT, Polypropylene
- CP#:
- Item#: PPA300
- Mfr#: PPA300
- Manufactured from a glass-filled polypropylene
- 1/2 in couplers and adapters will interchange with 3/4 in couplers and adapters, only the threads and barbs are 1/2 in
- 1-1/4 in couplers and adapters will interchange with 1-1/2 in couplers and adapters, only the threads and barbs are 1-1/4 in
- Polypropylene cam and groove should not be mixed with metal fittings
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Not recommended for use with PTFE gaskets
- 60 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Cam and Groove Adapter, Type A, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x FNPT, 3-5/16 in Length, 60 psi, Polypropylene, 3-19/32 in Dia
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Dimensions | : | 3-19/32 in Dia |
| Length | : | 3-5/16 in |
| Pressure Rating | : | 60 psi |
| Fitting/Connector Type | : | Adapter |
| Type | : | Type A |
| Nominal Size | : | 3 in |
| End Style | : | Male Adapter x FNPT |
| Material | : | Polypropylene |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_TA774_Catalog.pdf
