Dixon®
MFB102

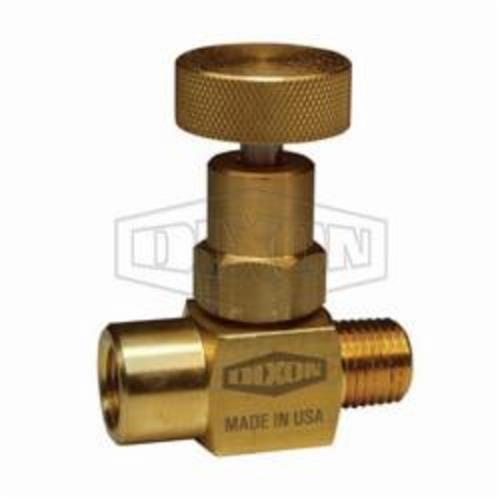

Dixon® MFB102 Mini Needle Valve, 1/4-18 MNPT x FNPT Nominal, 6000 psi Pressure, Brass Body
- Item#: MFB102
- Mfr#: MFB102
- UPC: 089109851577
- A FKM o-ring seal and a PTFE back-up ring below the threads protects the mini valve from corrosion and galling
- Stem threads are rolled for strength and ease of operation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Mini Needle Valve, 1/4-18 MNPT x FNPT Nominal, 6000 psi, 200 deg F, Knurled Knob Actuation, Brass Body, 316 Stainless Steel Trim, FKM O-Ring Seal
SPECIFICATIONS
| Actuation Type | : | Knurled Knob |
| Softgoods Material | : | FKM O-Ring Seal |
| Temperature Rating | : | 200 deg F |
| Trim Material | : | 316 Stainless Steel |
| Nominal Size | : | 1/4-18 MNPT x FNPT |
| Pressure Rating | : | 6000 psi |
| Body Material | : | Brass |
