MAH10

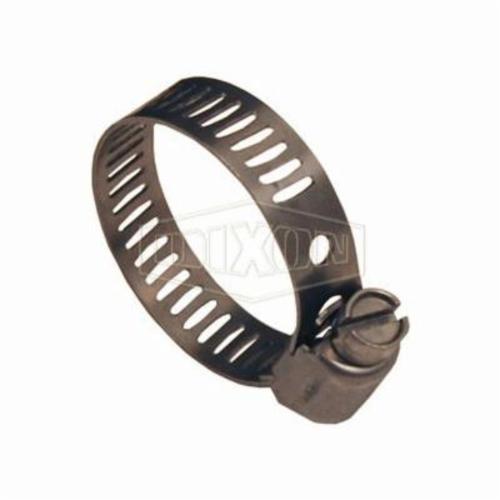

Dixon® MAH10 Miniature Worm Gear Clamp, 36/64 to 1-4/64 in Clamp, Stainless Steel Band, Stainless Steel Bolt, Domestic
- CP#:
- Item#: MAH10
- Mfr#: MAH10
- 1/4 in slotted hex head screw design
- SAE 300 series stainless steel
- Maximum recommended torque is 15 in. lbs
- Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Worm Gear Clamp, Miniature, Series: MAH, Clamping Range: 36/64 to 1-4/64 in, 5/16 in Width, 1/4 in Bolt, 15 in-lb, Grade:300, Stainless Steel Band, Stainless Steel Screw, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Bolt Size | : | 1/4 in |
| Grade | : | 300 |
| Series | : | MAH |
| Torque Rating | : | 15 in-lb |
| Type | : | Miniature |
| Width | : | 5/16 in |
| Clamping Range | : | 36/64 to 1-4/64 in |
| Band Material | : | Stainless Steel |
| Bolt Material | : | Stainless Steel Screw |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_4000_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_MAH10_Catalog.pdf
