J3F3

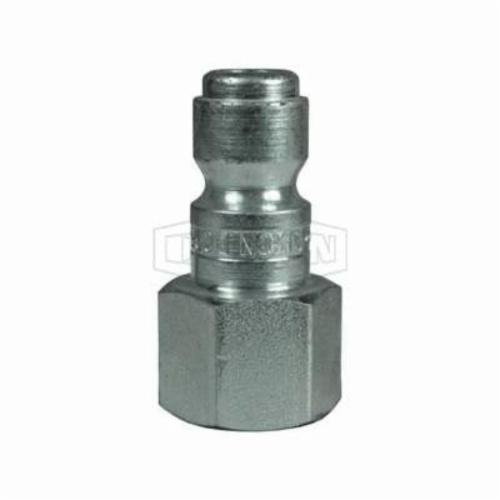

Dixon® J3F3 J Series Tru-Flate Automotive Female Quick Disconnect Pneumatic Plug, 3/8-18 Nominal, Quick Disconnect Plug x NPTF, 500 psi Pressure, Steel

  • Item#: J3F3
  • Mfr#: J3F3
    • Machined components are manufactured using solid bar stock
    • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
    • Nitrile seals are standard
    • Steel componentry is plated using ROHS compliant trivalent chrome
    • Steel sleeve and steel tubular valve
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Female Quick Disconnect Pneumatic Plug, Tru-Flate Automotive, Series: J Series, 3/8-18 Nominal, Quick Disconnect Plug x NPTF End Style, 7/8 in Hex, 1-3/4 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, 1.01 in OD

SPECIFICATIONS

Dimensions      :      1.01 in OD
Hex Size      :      7/8 in
Length      :      1-3/4 in
Series      :      J Series
Temperature Rating      :      -40 to 250 deg F
Type      :      Tru-Flate Automotive
Nominal Size      :      3/8-18
End Style      :      Quick Disconnect Plug x NPTF
Pressure Rating      :      500 psi
Material      :      Steel

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_DCP6_Catalog.pdf
