IXF48-2

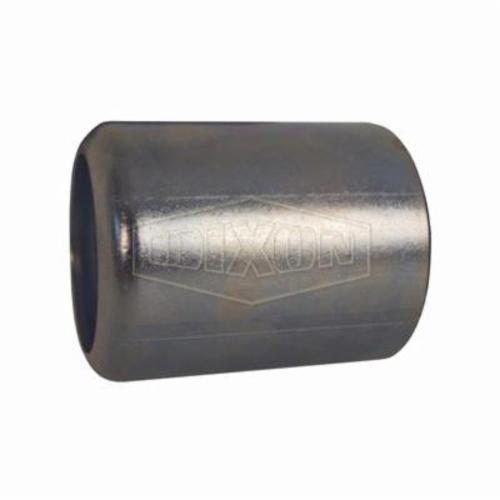

Dixon® IXF48-2 Internal Expansion Ferrule, 3 in ID x 4 to 4-4/64 in OD Nominal, Hose, 4-5/16 in L, Carbon Steel, Domestic
- CP#:
- Item#: IXF48-2DIX
- Mfr#: IXF48-2
- ISM, IXH and IXV styles holedall internal expansion stems
- Internally expanded couplings are essential when maximum flow of media is important
- Reduces turbulence through hose
- Excellent sealing and retention characteristics
- Only one expansion tool is needed for each ID
- Dixon® holedall stems and ferrules are specifically designed to be used together as a coupling system
- Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon® holedall products
- Do not use a wrench or vice on ferrule
- Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure
- Holedall fittings are not to be used with cable reinforced high pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations
- Strict adherences to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance
- Internally expanded holedall couplings are not to be used with plastic lined chemical hose
- Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
- The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
- Media being transported through the hose should be compatible with the stem material
- Compatibility of ferrule material with the environment in which it will be used is recommended
- For applications other than the ones list, please consult Dixon®
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Ferrule, Internal Expansion, 3 in ID x 4 to 4-4/64 in OD Nominal, Hose End Style, 4-5/16 in Length, Carbon Steel, Plated, 4-1/16 in ID, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Dimensions | : | 4-1/16 in ID |
| Finish | : | Plated |
| Type | : | Internal Expansion |
| Nominal Size | : | 3 in ID x 4 to 4-4/64 in OD |
| End Style | : | Hose |
| Length | : | 4-5/16 in |
| Material | : | Carbon Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_IXF48-2_Catalog.pdf
