ID075

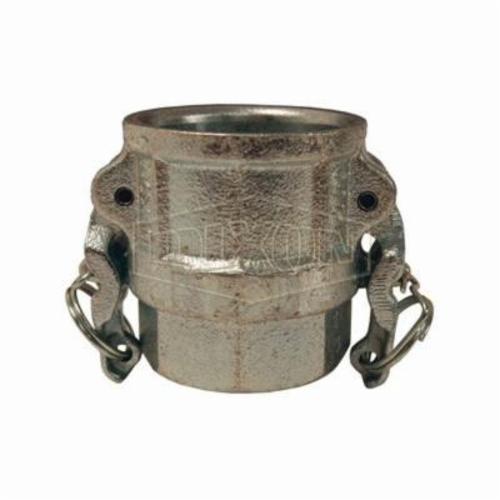

Dixon® ID075 Boss-Lock™ Type D Cam and Groove Coupler, 3/4 in Nominal, Female Coupler x FNPT End Style, Malleable Iron, Domestic
- CP#:
- Item#: ID075
- Mfr#: ID075
- 5-13/32 in open across cam arm x 1-3/8 in across flats
- Buna-N gasket
- Boss-lock cam arms
- Supplied with pull ring safety clips
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Cam and Groove Coupler, Type D, Series: Boss-Lock™, Coupling Fitting/Connector, 3/4 in Nominal, Female Coupler x FNPT End Style, 2-7/32 in Length, 250 psi Pressure, Malleable Iron, Plated, Domestic
SPECIFICATIONS
| Finish | : | Plated |
| Length | : | 2-7/32 in |
| Pressure Rating | : | 250 psi |
| Series | : | Boss-Lock™ |
| Fitting/Connector Type | : | Coupling |
| Type | : | Type D |
| Nominal Size | : | 3/4 in |
| End Style | : | Female Coupler x FNPT |
| Material | : | Malleable Iron |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_ID075_Catalog.pdf -
VIDEO LINK
http://youtu.be/Vgth_9M5IRM?list=PL10BD55ADAF82DEDA
