HU200200

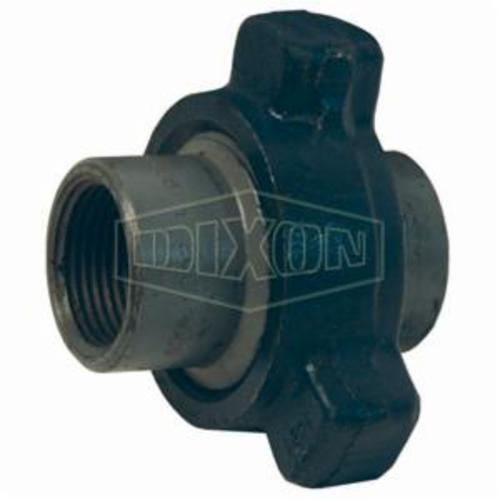

Dixon® HU200200 Standard Service Hammer Union, 2 in, FNPT, Steel, Domestic
- CP#:
- Item#: HU200200
- Mfr#: HU200200
- UPC: 089109832354
- Hammer unions work at extremely high pressures
- Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death
- Non-shocking cold water pressure means that the rated value is the maximum operating pressure at ambient temperature
- No spikes higher than this pressure
- No instantaneous pressure increases (0 to 2000 psig in 1/4 of a s)
- Nitrile O-ring mounted sub provides excellent sealing properties
- Gray subs and blue nut
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Hammer Union, Standard Service, Series: 200, Fitting/Connector Type: Union, 2 in Nominal, FNPT, 3-1/8 in Length, 2000 psi, Forged, Steel, -20 to 250 deg F, 5-23/32 in Dia, Domestic
SPECIFICATIONS
| Dimensions | : | 5-23/32 in Dia |
| Length | : | 3-1/8 in |
| Method of Manufacture | : | Forged |
| Pressure Rating | : | 2000 psi |
| Series | : | 200 |
| Temperature Rating | : | -20 to 250 deg F |
| Type | : | Standard Service |
| Fitting/Connector Type | : | Union |
| Nominal Size | : | 2 in |
| End Style | : | FNPT |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HU100200_Catalog.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HU200200_Full_Engineering_Drawing.pdf
