HU200100

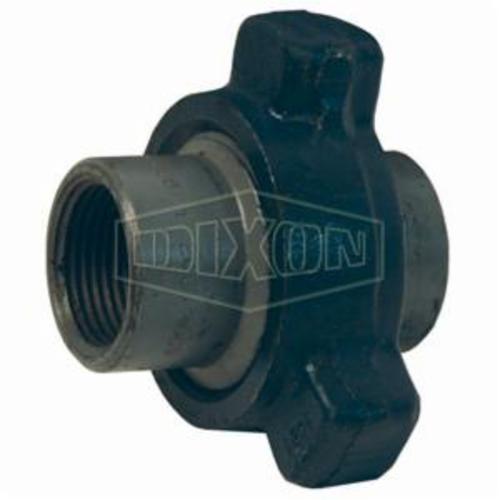

Dixon® HU200100 Standard Service Hammer Union, 1 in, FNPT, Steel, Domestic
- CP#:
- Item#: HU200100
- Mfr#: HU200100
- Hammer unions work at extremely high pressures
- Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death
- Non-shocking cold water pressure means that the rated value is the maximum operating pressure at ambient temperature
- No spikes higher than this pressure
- No instantaneous pressure increases (0 to 2000 psig in 1/4 of a s)
- Nitrile O-ring mounted sub provides excellent sealing properties
- Gray subs and blue nut
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Hammer Union, Standard Service, Series: 200, Fitting/Connector Type: Union, 1 in Nominal, FNPT, 2-7/16 in Length, 2000 psi, Forged, Steel, -20 to 250 deg F, 4-1/32 in Dia, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Dimensions | : | 4-1/32 in Dia |
| Length | : | 2-7/16 in |
| Method of Manufacture | : | Forged |
| Pressure Rating | : | 2000 psi |
| Series | : | 200 |
| Temperature Rating | : | -20 to 250 deg F |
| Type | : | Standard Service |
| Fitting/Connector Type | : | Union |
| Nominal Size | : | 1 in |
| End Style | : | FNPT |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HU100200_Catalog.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HU200100_Full_Engineering_Drawing.pdf
