HT4F4

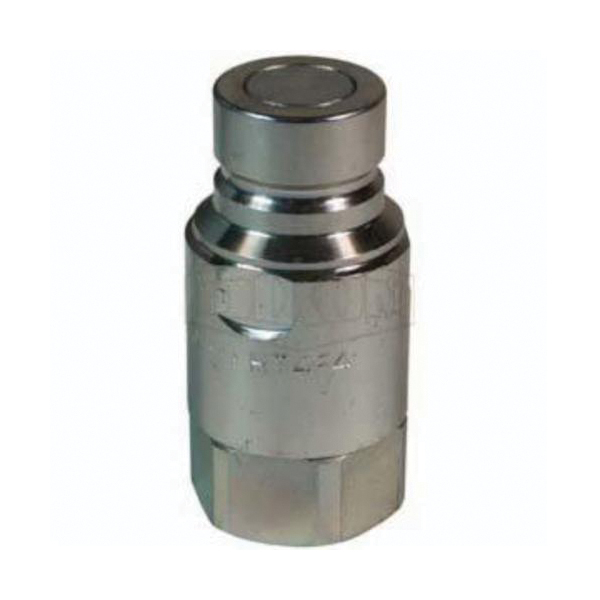

Dixon® HT4F4 HT Series Flush Face Female Plug, 1/2-14 Nominal, FNPT, Steel, Domestic
- CP#:
- Item#: HT4F4
- Mfr#: HT4F4
- UPC: 089109828579
- Machined components are manufactured using solid bar stock
- Easily rebuildable
- High flow performance, compact profile
- High-strength laser-cut valve guide maximizes valve stability while minimizing flow restriction
- Improved sealing system incorporates a high performance molded polyurethane or o-ring energized PTFE valve seal
- Rated pressure for connected steel coupler and steel plug: 5000 psi maximum working and 20000 psi burst
- Steel nipples are hardened to provide resistance to brinelling during impulse service
- Has molded polyurethane valve seals, with a temperature range of -65 to 212 deg F
- Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of -40 to 250 deg F
- PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
- 20000 psi burst pressure
- 5000 psi at 70 deg F pressure
- Interchangeable to ISO16028
- Compatible with Parker FEM-Series, Snap-Tite 74-Series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, faster FFH/2FFN/2FFI and Safeway FF49-Series
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Flush Face Female Plug, Series: HT Series, 1/2-14 Nominal, FNPT, 1-3/16 in Hex, 2.63 in Length, 5000 psi, Steel, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause cancer, and/or one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Hex Size | : | 1-3/16 in |
| Length | : | 2.63 in |
| Pressure Rating | : | 5000 psi |
| Series | : | HT Series |
| Nominal Size | : | 1/2-14 |
| End Style | : | FNPT |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HT3DC_Catalog.pdf
