HT3F4

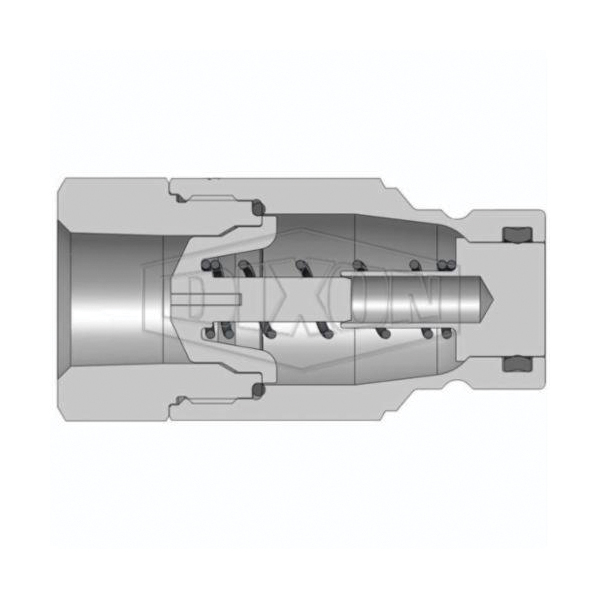

Dixon® HT3F4 HT Series Flush Face Female Plug, 1/2-14 Nominal, FNPT, Steel, Domestic
- CP#:
- Item#: HT3F4
- Mfr#: HT3F4
- Machined components are manufactured using solid bar stock
- Easily rebuildable
- High flow performance, compact profile
- High-strength laser-cut valve guide maximizes valve stability while minimizing flow restriction
- Improved sealing system incorporates a high performance molded polyurethane or o-ring energized PTFE valve seal
- Rated pressure for connected steel coupler and steel plug: 5000 psi maximum working and 20000 psi burst
- Steel nipples are hardened to provide resistance to brinelling during impulse service
- Has molded polyurethane valve seals, with a temperature range of -65 to 212 deg F
- Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of -40 to 250 deg F
- PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
- 20000 psi burst pressure
- 5000 psi at 70 deg F pressure
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Flush Face Female Plug, Series: HT Series, 1/2-14 Nominal, FNPT, 1-1/8 in Hex, 2.7 in Length, 5000 psi, Steel, Domestic
SPECIFICATIONS
| Hex Size | : | 1-1/8 in |
| Length | : | 2.7 in |
| Pressure Rating | : | 5000 psi |
| Series | : | HT Series |
| Nominal Size | : | 1/2-14 |
| End Style | : | FNPT |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HT3F3-SS_Catalog.pdf
