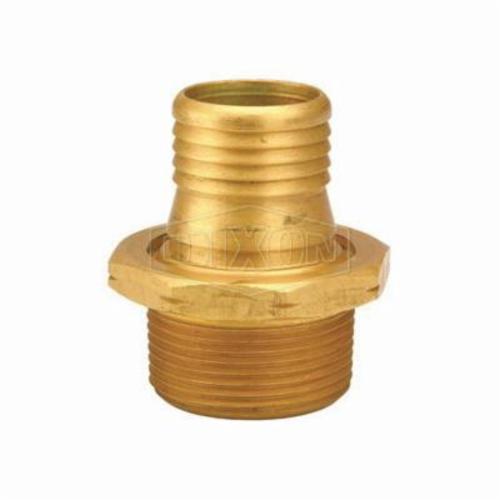

Dixon® H5272 Scovill Style Permanent Coupling, 1-3/8 in Nominal, MNPT, Brass, Domestic

  • Item#: H5272
  • Mfr#: H5272
    • Couplings are compact, light and streamlined to eliminate catching on curbs and shrubs
    • Male has octagonal facets for tightening with a wrench
    • The stem is expanded to nominal ID of hose for a rigid, uniform, full-flow area
    • Couplings are pre-lubricated for assembly
    • Designed for internal expansion only
    • Stems are machined from bar stock or solid brass forgings
    • The working pressure of the 520-H fitting varies with the size of the fitting, the size and construction of the hose and the media being conveyed
    • Hand and electrically operated installation equipment is available
    • Do not interchange with other manufacturer's fittings
    • Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system
    • Do not use a wrench or vice on ferrule
    • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure
    • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations
    • Strict adherence to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance
    • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
    • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
    • Media being transported through the hose should be compatible with the stem material
    • Compatibility of ferrule material with the environment in which it will be used is recommended
    • For applications other than the ones list, please consult Dixon
    • Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Permanent Coupling, Scovill Style, 1-3/8 in Nominal, MNPT, Brass, Domestic

SPECIFICATIONS

Type      :      Scovill Style
Nominal Size      :      1-3/8 in
End Style      :      MNPT
Material      :      Brass
Domestic/Import      :      Domestic
