GM28

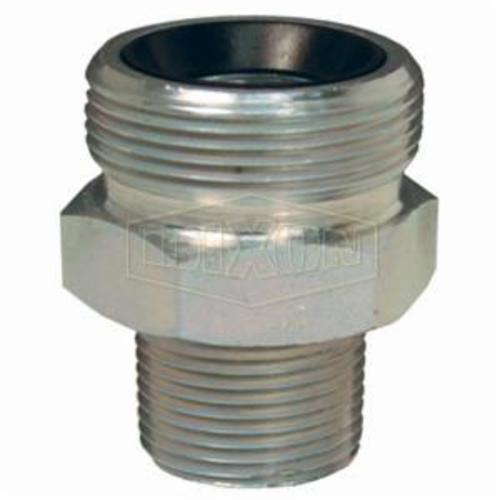

Dixon® GM28 Boss™ Ground Joint Spud, 2 in, MNPT, Iron, Domestic
- CP#:
- Item#: GM28
- Mfr#: GM28
- The spud part of the coupling serves as one half of the boss ground joint connection and is usually fixed to the equipment
- The stem part that is clamped to the hose is the other half
- The two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical and a pressure seal
- Easy to seal
- Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet
- Positive metal-to-polymer seal
- Use with boss ground joint fittings
- Leakproof seal forms when the metal head of the stem makes contact with the patented polymer seat in the spud
- The non-metallic polymer seat resists most chemicals found in manufacturing facilities
- Recommended for steam service up to 450 deg F
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
- Each coupling user should review applications and add safety devices where indicated
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturer's product recommendations for pressurized steam handling
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Ground Joint Spud, Series: Boss™, Spud, 2 in Nominal, MNPT, 3 in Hex, Iron, Plated, 3-5/32 in L, Domestic
SPECIFICATIONS
| Dimensions | : | 3-5/32 in L |
| Finish | : | Plated |
| Hex Size | : | 3 in |
| Series | : | Boss™ |
| Fitting/Connector Type | : | Spud |
| Nominal Size | : | 2 in |
| End Style | : | MNPT |
| Material | : | Iron |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DATL016W_Catalog.pdf
