GF111

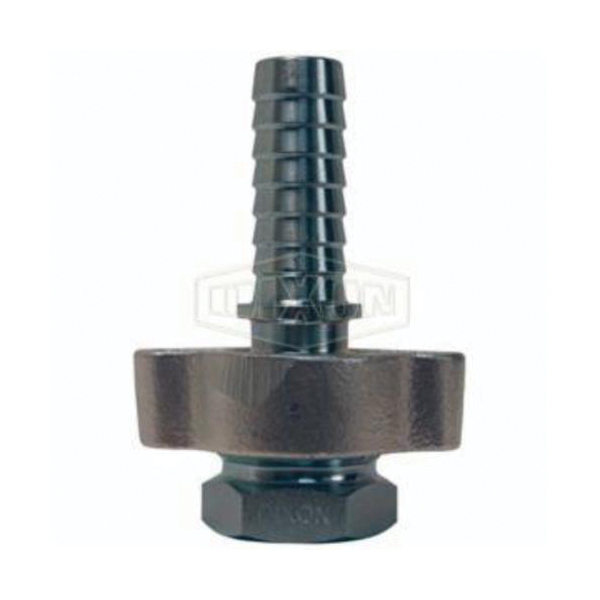

Dixon® GF111 Boss™ Ground Joint Coupling, 3 in Nominal, FNPT End Style, Iron, Domestic
- CP#:
- Item#: GF111
- Mfr#: GF111
- UPC: 089109829590
- The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment
- The stem part that is clamped to the hose is the other half
- The two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical and a pressure seal
- Easy to seal
- Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet
- Use with Boss™ clamps
- Leakproof seal forms when the metal head of the stem makes contact with the patented polymer seat in the spud
- The non-metallic polymer seat resists most chemicals found in manufacturing facilities
- Recommended for steam service up to 450 deg F
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturer's product recommendations for pressurized steam handling
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Ground Joint Coupling, Series: Boss™, Coupling Fitting/Connector, 3 in Nominal, FNPT End Style, 4-7/8 in Hex, Iron, Plated, 7-3/4 in L x 9-1/32 in H Dimensions, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause cancer, and/or one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Dimensions | : | 7-3/4 in L x 9-1/32 in H |
| Finish | : | Plated |
| Hex Size | : | 4-7/8 in |
| Series | : | Boss™ |
| Fitting/Connector Type | : | Coupling |
| Nominal Size | : | 3 in |
| End Style | : | FNPT |
| Material | : | Iron |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DATL016W_Catalog.pdf
